4G Base Station Fronthaul Overall Solution

Overview

A typical 4G base station tower includes antennas, feeder cables, and Remote Radio Units (RRUs). The antennas connect to the RRUs via feeder cables, while the RRUs connect to the Baseband Units (BBUs) located in nearby equipment rooms via fiber optics. Usually, one BBU connects to three RRUs. The 4G base station fronthaul refers to the optical transmission segment between the RRUs and the BBU.

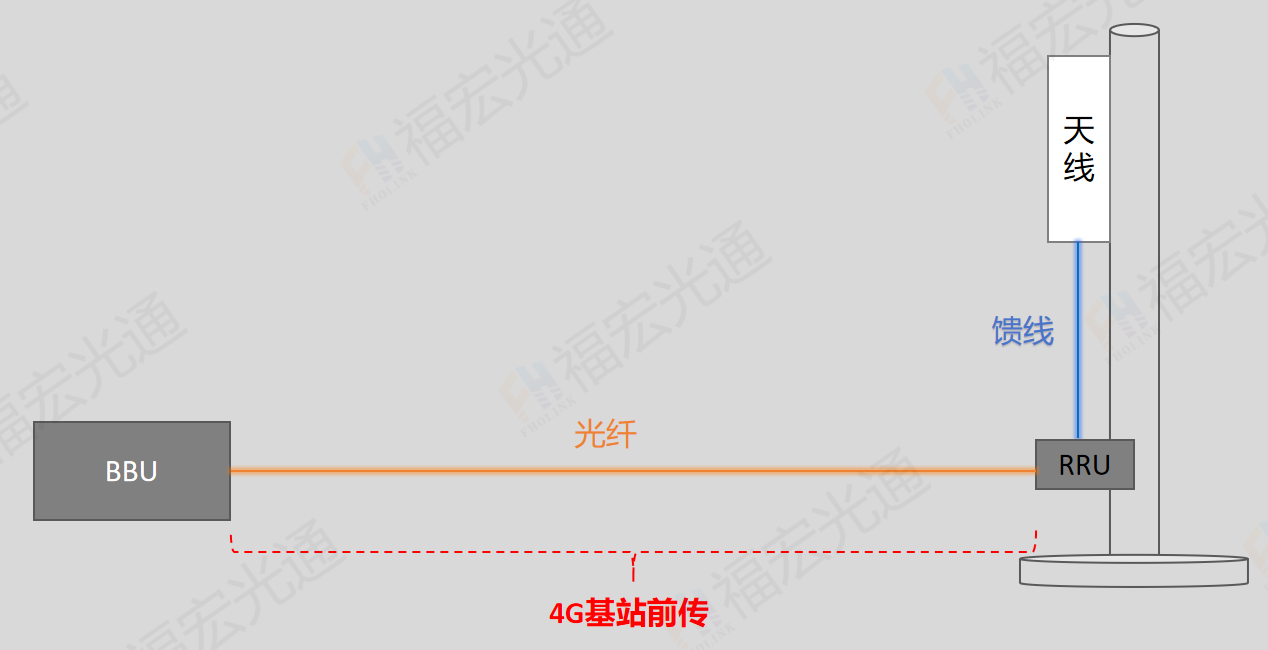

Schematic Diagram of 4G Base Station Fronthaul - FHOLINK Technology

Solution Brief

FHOLINK Technology's *4G Base Station Fronthaul Optical Transmission Solution* primarily utilizes passive plug-in Wavelength Division Multiplexers (WDM) and 10G colored optical modules to address the optical transmission between BBUs and RRUs. This enables a single BBU to connect to three RRUs, and can even extend to connecting six or twelve RRUs. The solution includes the complete set of equipment from the BBU to the antennas.

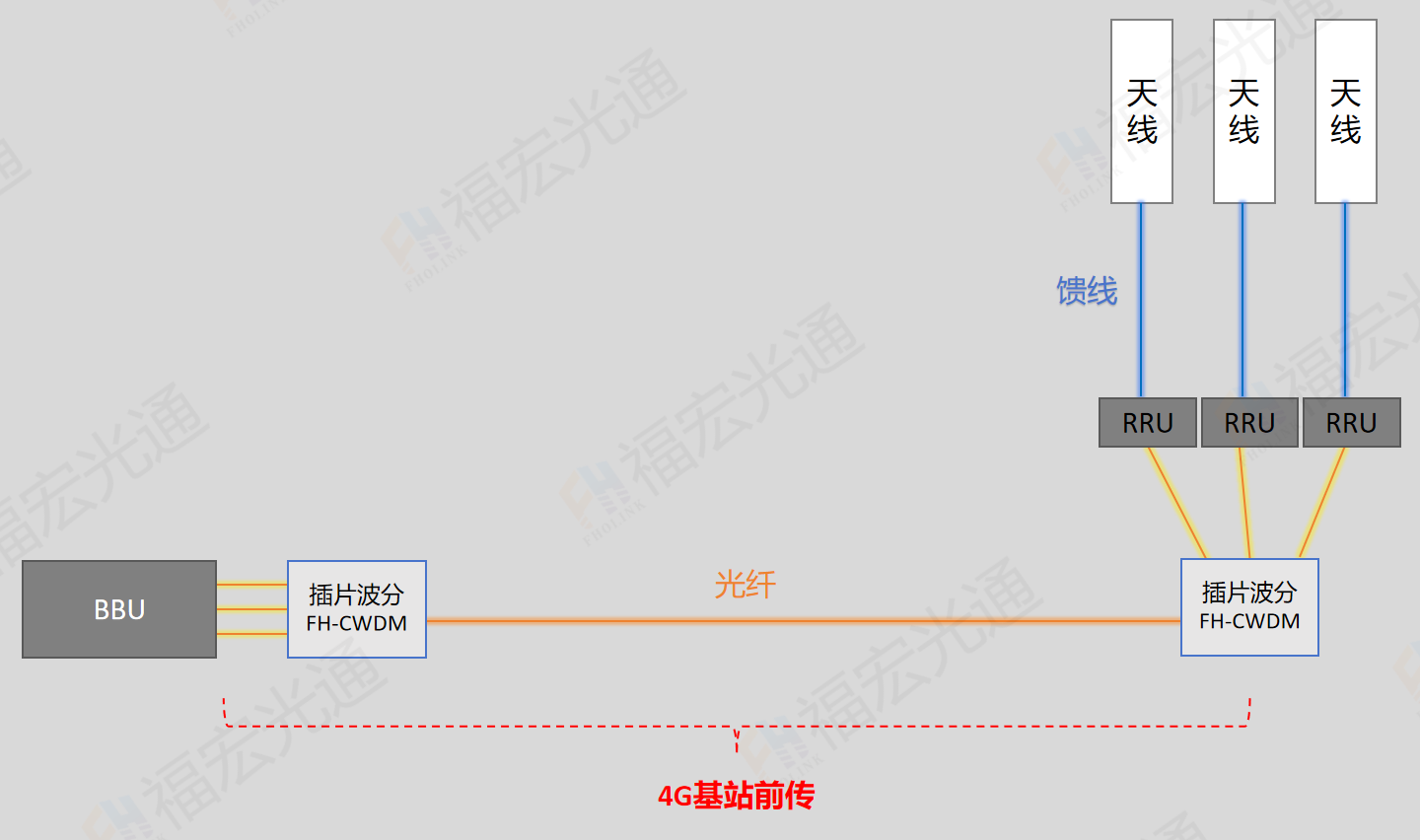

Schematic Diagram of 4G Base Station Fronthaul WDM Solution - FHOLINK Technology

Solution Advantages

1. Diverse product portfolio

2. Saves fiber optic cable resources

3. Easy expansion to effectively accommodate data growth

4. Cost-effective, reducing overall deployment costs

5. Simple installation and activation

Related Products

1. 4G Base Station Fronthaul: Plug-in WDM + 10G Colored Optical Modules

2. High-Power Distributed Small Cells (including BBU and RRU equipment)

3. Fiber Optic Repeater Equipment: Near-end & Far-end Units

Applicable Scenarios

1. 4G/5G Base Station Fronthaul

2. Campus Networks

3. Point-to-Point Fiber Capacity Expansion
