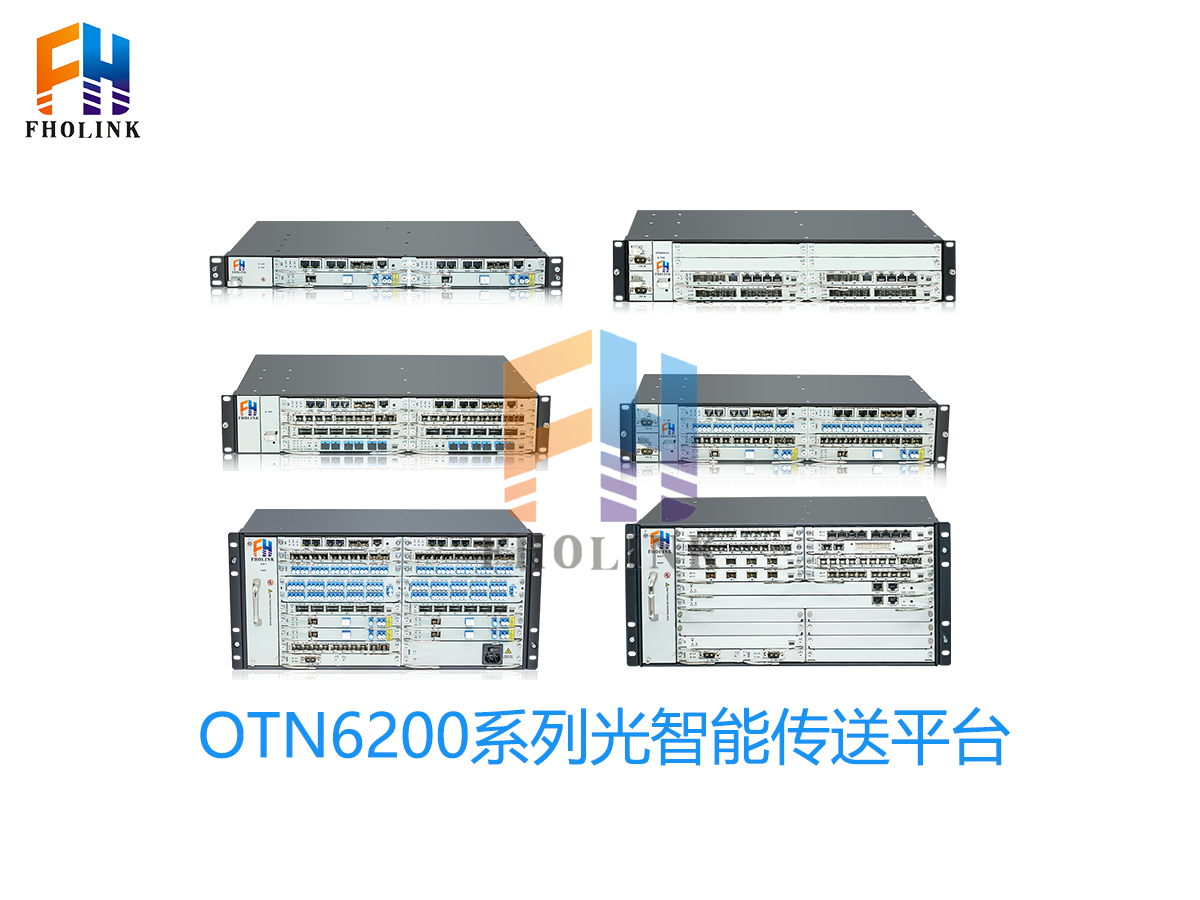

OTN6200 Series Intelligent Optical Transport Platform
The OTN intelligent optical transport platform supports high-capacity service scheduling, offering single-wavelength rates of 1.25G/2.5G/10G/40G/100G/200G. It enables rapid and complex network deployment while integrating functions such as optical service aggregation, switching, and OADM. Key features include 1+1 dual power supply protection (compatible with both AC and DC), intelligent network management for remote monitoring, 1+1 dual-route protection cards, optical amplification cards, wavelength division multiplexing cards, multi-service hybrid transmission, early warning and alarm systems, 3R functionality, robust FEC error correction, seamless capacity expansion, and long-distance transmission. The platform supports various chassis sizes, including 1U, 2U, 5U, and 10U.
Product Features
1. Multi-Service Access
- Full-service access support from 155M to 100G
- SDH services: STM-1/4/16/64
- SONET services: OC-3/12/48/192
- Ethernet services: GE, 10G LAN/WAN, 40GE, 100GE
- OTN services: OTU2, OTU2e, OTU3, OTU4
- OTN encapsulation, mapping, and overhead as defined by G.709
2. Smooth Capacity Expansion
- FH-OTN6800 supports multi-chassis cascading and seamless upgrades
- Service upgrade capability from 10Gbit/s to 100G/200Gbit/s
- Scalable wavelength expansion from 40 to 80 channels
- Maximum single-fiber transmission capacity of 8T/16T
3. High Reliability Design
- Advanced technologies: Standard FEC, Enhanced FEC, SD-FEC, PM-QPSK, 8/16QAM modulation
- Enhanced system design margin for ultra-long-haul and ultra-long-span transmission
- Comprehensive protection schemes: Optical channel 1+1, optical multiplex section 1+1, and optical line 1+1 protection
- Electrical layer protection: ODUk SNC protection and ODUk ring network protection
- Flexible protection for chain, ring, and mesh networks
- Device-level redundancy: 1+1 backup for power supplies and main control cards
4. Integrated CWDM/DWDM Capability
- Flexible DWDM or CWDM networking based on actual requirements
- Reduces chassis and board requirements at network nodes, improving deployment flexibility
5. Security Encryption
- Line-side interface support for Layer-1 data encryption
- AES-256 algorithm for encrypting OTN frame payload (OPUk)
- Provides efficient, low-latency secure transmission solutions
6. Unified Management
- FH-OTN6800 utilizes the NMS3000 network management system
- B/S architecture with multi-process, modular design
- Enables unified management and configuration of Fholink intelligent optical transmission equipment
Technical Specifications
| Product Model | FH-OTN6204 | FH-OTN6208 | FH-OTN6216 | |
| Supported WDM Types and Channel Count | CWDM、DWDM、OADM；1-80 channels customizable | |||
| Wavelength Range | Compliant with ITU-T G.692 and ITU-T G.695 standards | |||
| Number of Supported Slots | 4 standard slots, supports rear dual power supply backup (dual AC220V/dual DC-48V/AC220V+DC-48V combination), supports management card 1+1 protection, with fan. | Configuration 1: Front dual DC-48V, 8 standard slots Configuration 2: Rear dual power supply (DC-48V + AC220V), 8 standard slots Common features: Supports management card 1+1 protection, with fan |
Configuration 1: 19 standard slots (front dual DC) Configuration 2: 17 standard slots (front DC + AC) Configuration 3: 16 standard slots (front dual AC) Common Features: Supports management card 1+1 protection, with fan |
|
| Service Access Types | Supports multiple service access types including SDH (Synchronous Digital Hierarchy), SONET (Synchronous Optical Network), Ethernet, SAN (Storage Area Network) storage services, and OTN (Optical Transport Network) services. | |||
| Client-side Supported Optical Port Rates | 155Mbit/s、622Mbit/s、1.25 Gbit/s、2.5 Gbit/s、10 Gbit/s | |||
| Networking Methods | Point-to-point, point-to-multipoint, long-chain, and ring network topologies. | |||
| Fiber Type | G.652, G.653 (not recommended), G.655 | |||
| Network Management Method | The NMS adopts a B/S architecture and multi-process, modular design, enabling unified management and configuration of Fholink intelligent optical transmission equipment networking. | |||
| Product Dimensions (H)×(W)×(D) (mm) | 44*444*325 | Front power supply: 88 × 444 × 225 mm Rear power supply: 88 × 444 × 330 mm |
222*444*225 | |
| Environmental Requirements | Operating Temperature | -5℃~+60℃ | ||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Relative Humidity | 5% ~ 95% Non-condensing | |||
| Power Supply Requirements | 220V AC/110V AC；48V DC/-60V DC；(Optional) | |||
| Safety & EMC | Compliant withFCC、UL、CE、TUV、CSA Standard | |||
| Power Consumption | <150W | <300W | <350W | |
-
