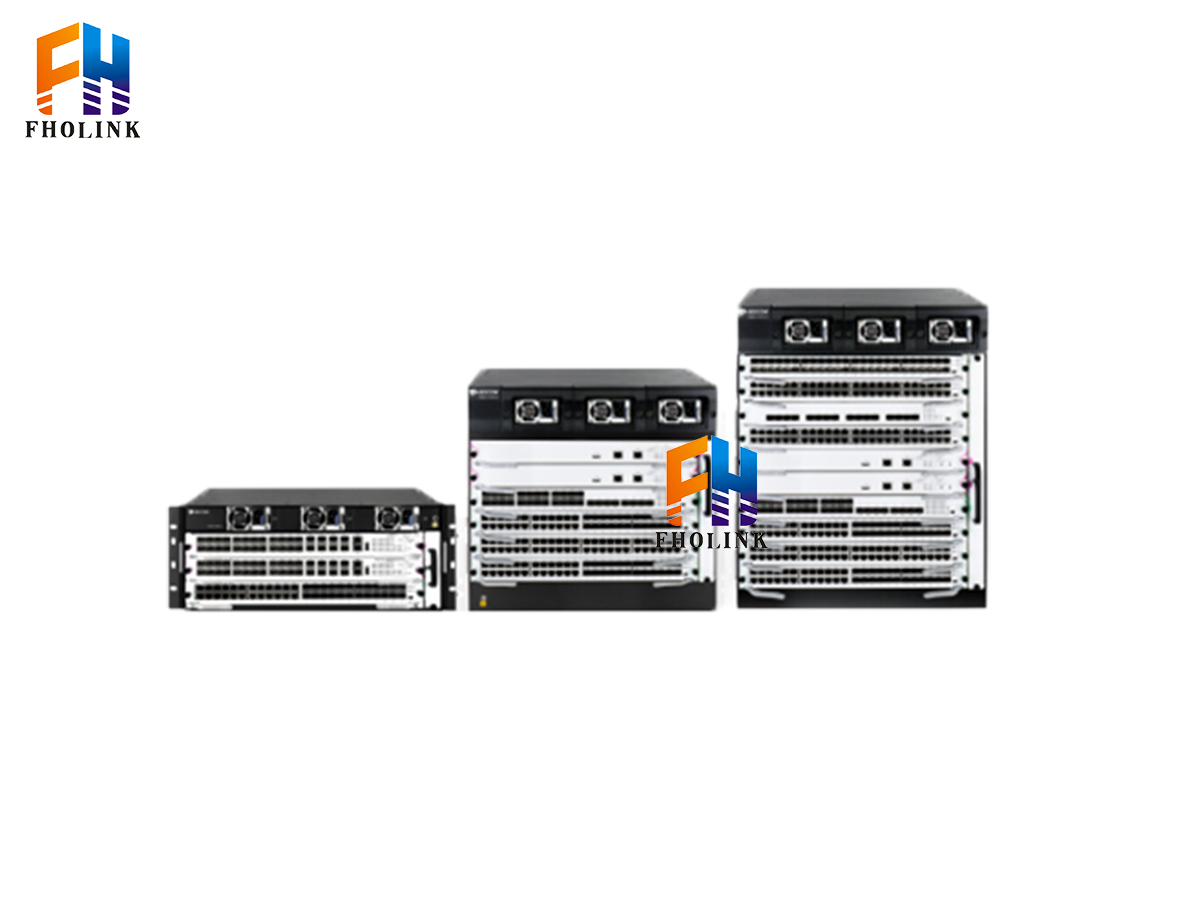

CE6800 Series Campus Network Core Switch
Product Overview
The CE6800 switch series is a next-generation T-bit carrier-class core switch launched by Fuhong Guangtong Technology for next-generation IP metropolitan area networks and large-scale campus networks. This series adopts an industry-leading distributed multi-stage switching fabric architecture, delivering high-performance Layer 2/3/4 line-rate switching while integrating a wide range of network services such as IPv6, MPLS VPN, network security, traffic analysis, and virtualization. Combined with high-availability technologies including hitless upgrades, non-stop forwarding, graceful restart, and redundant protection, it ensures maximum network uptime and communication continuity.
Features
1. Advanced hardware architecture with industry-leading processing capability
2. Carrier-class high reliability
3. Virtualized cluster switching technology
4. Comprehensive service features
5. Full IPv6 solution support
6. Robust security mechanisms
7. Innovative energy-saving and eco-friendly design
Technical Parameters
| CE6800 Series Campus Network Core Switch | |||
| Product Category | Device Name | Model | Specifications |
| CE6803 Core Switch | CE6803 Chassis | FH-CE6803 | Chassis Assembly (includes: 1 fan tray, 3 power supply slots, 2 service-oriented main control slots, 1 full-feature service slot; power supplies not included as standard) Switching Capacity: 38.4/166.4 Tbps Forwarding Rate: 7220/36000 Mpps |
| CE6803 Dedicated AC Power Supply | FH-CE6803-PA350 | CE6803 AC Power Supply Module 350W | |
| CE6803 Dedicated DC Power Supply | FH-CE6803-PD350 | CE6803 DC Power Supply Module 350W | |
| CE6803 Dedicated Service-Oriented Main Control Board | FH-CE6803-MSU-24G8M | CE6803 Service-Oriented Main Control Card, 24x Gigabit SFP + 8x 10Gb SFP+ | |
| CE6803 Dedicated Service-Oriented Main Control Board | FH-CE6803-MSU-24T8M | CE6803 Service-Oriented Main Control Card, 24x Gigabit SFP + 8x 10Gb SFP+ | |
| CE6800 Core Switch | CE6806 Chassis | FH-CE6806 | Chassis Assembly (includes: 1 fan tray, 3 power supply slots, 2 main control slots, 4 service slots; power supplies not included as standard) Switching Capacity: 76.8/307.2 Tbps Forwarding Rate: 8640/57600 Mpps |
| CE6810 Chassis | FH-CE6810 | Chassis Assembly (includes: 1 fan tray, 3 power supply slots, 2 main control slots, 8 service slots; power supplies not included as standard) Switching Capacity: 105.6/422.4 Tbps Forwarding Rate: 14400/86400 Mpps |
|
| CE6800 Dedicated AC Power Supply | FH-CE6803-PA550 | 550W AC Power Supply Module (supports full load of 8 line cards), compatible with CE6806 and CE6810 chassis | |
| CE6800Dedicated DC Power Supply | FH-CE6803-PD550 | 550W DC Power Supply Module (supports full load of 8 line cards), compatible with CE6806 and CE6810 chassis | |
| CE6800 Main Control Card | FH-CE6800-MSU-I | CE6800 Type I Main Control Board, compatible with CE6806 and CE6810 chassis | |
| CE6800 Main Control Card | FH-CE6800-MSU-II | CE6800 Type II Main Control Board, compatible with CE6806 and CE6810 chassis | |
| CE6800 Universal Service Board | CE6800 Gigabit Service Board | FH-CE68-24T24G | 24-Port Gigabit SFP Service Board |
| CE6800 Gigabit Service Board | FH-CE68-48T | 24-Port Gigabit RJ45 Service Board | |
| CE6800 Gigabit Service Board | FH-CE68-48G | 48-Port Gigabit RJ45 Service Board | |
| CE6800 Gigabit & 10-Gigabit Hybrid Service Board | FH-CE68-24G8M | 48-Port Gigabit SFP Service Board | |
| CE6800 Gigabit & 10-Gigabit Hybrid Service Board | FH-CE68-24T8M | 24-Port Gigabit SFP + 8-Port 10-Gigabit SFP+ Service Board | |
| CE6800 Gigabit & 10-Gigabit Hybrid Service Board | FH-CE68-24T24G6M | 24-Port Gigabit RJ45 + 8-Port 10-Gigabit SFP+ Service Board | |
| CE6800 10-Gigabit Service Board | FH-CE68-16M | 24-Port Gigabit SFP + 24-Port Gigabit RJ45 + 6-Port 10-Gigabit SFP+ Service Board | |
| CE6800 10-Gigabit Service Board | FH-CE68-48M | 16-Port 10-Gigabit SFP+ Service Board | |
| CE6800 10-Gigabit Service Board | FH-CE68-48MT | 48-Port 10GbE RJ45 Service Board | |
| CE6800 40G Service Board | FH-CE68-8Q | 8-Port 40G QSFP+ Service Board | |
| CE6800 40G Service Board | FH-CE68-24Q | 24-Port 40G QSFP+ Service Board | |
| CE6800 100G Service Board |
FH-CE68-4H | 4-Port 100G QSFP28 Service Board | |
| CE6800 Value-Added Service Board | CE6800 Firewall Service Board | FH-CE68-FW-I | CE6800 Firewall Service Board |
| CE6800 Intrusion Prevention Service Board | FH-CE68-ISP-I | CE6800 Intrusion Prevention Service Board | |
| CE6800 Load Balancing Service Board | FH-CE68-LB-I | CE6800 Load Balancing Service Board | |
| CE6800 Application Control Gateway Service Board | FH-CE68-ACG-I | CE6800 Application Control Gateway Service Board | |
| CE6800 NetStream Traffic Analysis Service Board | FH-CE68-NS-I | CE6800 NetStream Traffic Analysis Service Board | |
Applications
1. Interconnection of carrier core equipment rooms
2. IP metropolitan area networks
3. Large-scale campus networks
4. Government and enterprise private networks
-
