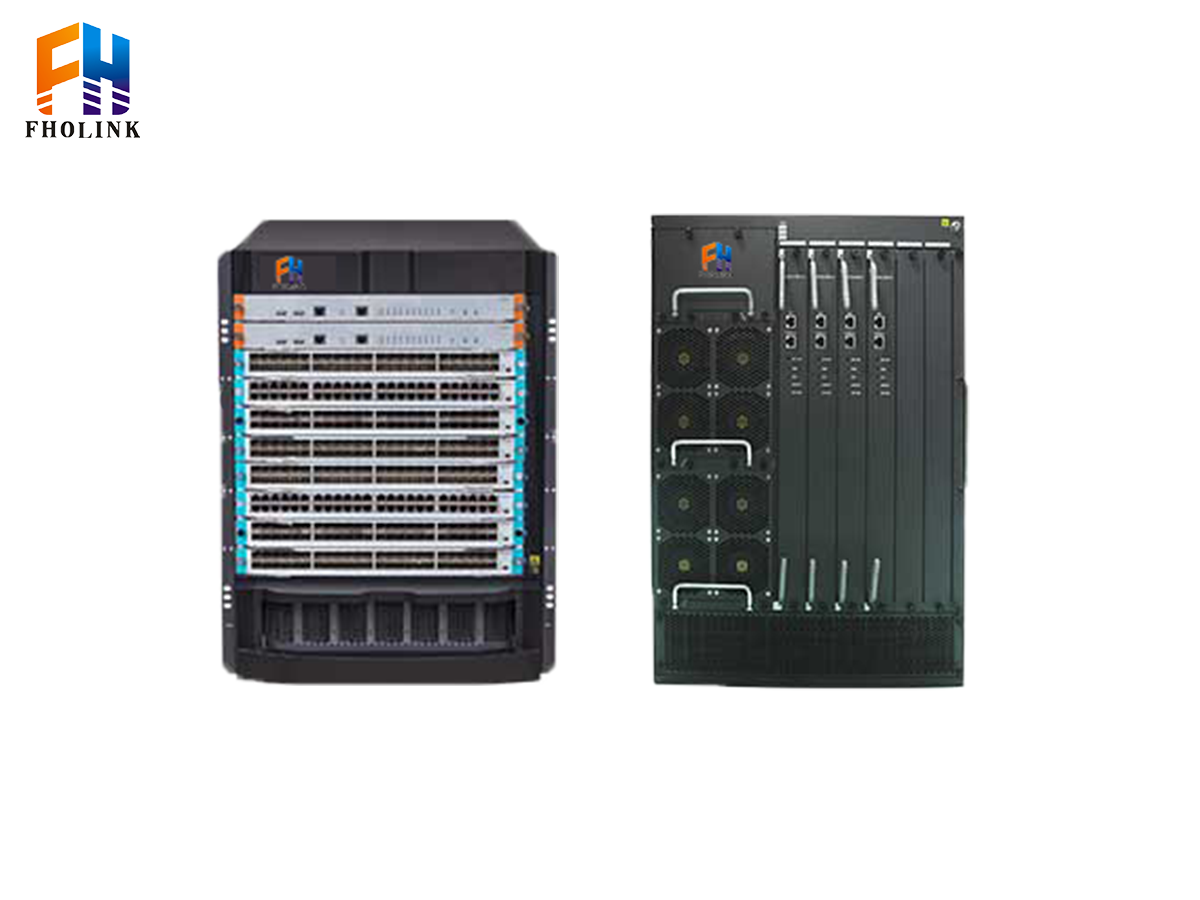

S9500 Series Data Center Core Switch
Product Overview
The S9500 series switches are a new generation of high-performance core switches launched by Fuhong Guangtong Technology for high-performance cloud computing, data centers, and high-end campus networks. With an advanced hardware architecture, the S9500 series delivers industry-leading switching performance and a rich set of data center service features.
The S9500 series supports up to 768×10G ports, 512×40G ports, and 128×100G ports per chassis, with scalability reserved for future expansion to 256×100G ports.
To meet the resource pooling requirements of cloud computing data center networks, the S5800 series supports extensive BVSS (Fuhong Virtual Switching System) virtualization capabilities. Combined with the S9500 series data center core switches, it enables access for over 15,000 ten-gigabit servers, providing a comprehensive network solution for ultra-large data centers.
Features
1. Advanced hardware architecture with industry-leading processing power
2. Carrier-grade high reliability
3. Virtualized cluster switching technology
4. Rich service features
5. Comprehensive IPv6 solution
6. Robust security mechanisms
7. Innovative energy-efficient and eco-friendly design
Technical Parameters
| S9500 Series Data Center Core Switch | |
| S9500 Series Chassis | |
| S9506 | S9506 Chassis Assembly (includes: 2 fan trays, 7 power supply slots, 4 switching fabric slots, 4 service slots; power supplies not included as standard) |
| S9510 | S9510 Chassis Assembly (includes: 3 fan trays, 7 power supply slots, 2 main control slots, 4 switching fabric slots, 8 service slots; power supplies not included as standard) |
| S9514 | S9514 Chassis Assembly (includes: 4 fan trays, 7 power supply slots, 2 main control slots, 4 switching fabric slots, 12 service slots; power supplies not included as standard) |
| S9518 | S9518 Chassis Assembly (includes: 5 fan trays, 7 power supply slots, 2 main control slots, 4 switching fabric slots, 16 service slots; power supplies not included as standard) |
| S9500 Series Power Supply |
|
| LS95-PWR-AC | S9500 Series AC Power Supply Module 1200W |
| LS95-PWR-POE | S9500 Series PoE AC Power Supply Module 1000W |
| S9500 Series Main Control Board | |
| LS95-MCU-B | S9500 Series Main Control Board |
| S9500 Series Switching Fabric Board | |
| LS9506-SFU-I | S9506 Switching Fabric Board Type I |
| LS9510-SFU-II | S9510 Switching Fabric Board Type II |
| LS9514-SFU-II | S9514 Switching Fabric Board Type II |
| S9500 Series Service Board | |
| Gigabit Service Board | |
| LS95-48GT-V1 | 48-Port Gigabit Ethernet Service Board (RJ45) |
| LS95-48GS-V1 | 48-Port Gigabit Fiber Service Board (SFP) |
| LS95-48GT-POE-V1 | 48-Port Gigabit PoE/PoE+ Service Board (RJ45) |
| 10-Gigabit Service Board | |
| LS95-48TS-V1 | 48-Port 10G/1G SFP+ Service Board |
| 40G Service Board | |
| LS95-8QS-V1 | 8-Port 40G QSFP+ Service Board |
| 100G Service Board | |
| LS95-4CF-V1 | 4-Port 100G QSFP28 Service Board |
Applications
1. High-speed data center interconnection
2. Cloud computing clusters
3. Operator core equipment room interconnection
4. IP metropolitan area networks
5. Large-scale campus networks
6. Government and enterprise private networks
-
