PS410 Series: Commercial Unmanaged PoE Switch
Product Overview
This series of switches supports four operating modes: Default, QoS, CCTV, and VLAN mode. It is suitable for a wide range of applications such as lighting systems, security surveillance, and enterprise campus networks.
Features
1. Rich port selection, including Fast Ethernet, Gigabit electrical, and optical ports
2. One‑click intelligence, supporting multiple operating modes
3. Quick installation and easy operation, compatible with desktop, wall‑mount, and rack‑mount deployment
Technical Parameters
| Product Category | Device Name | Model | Specifications |

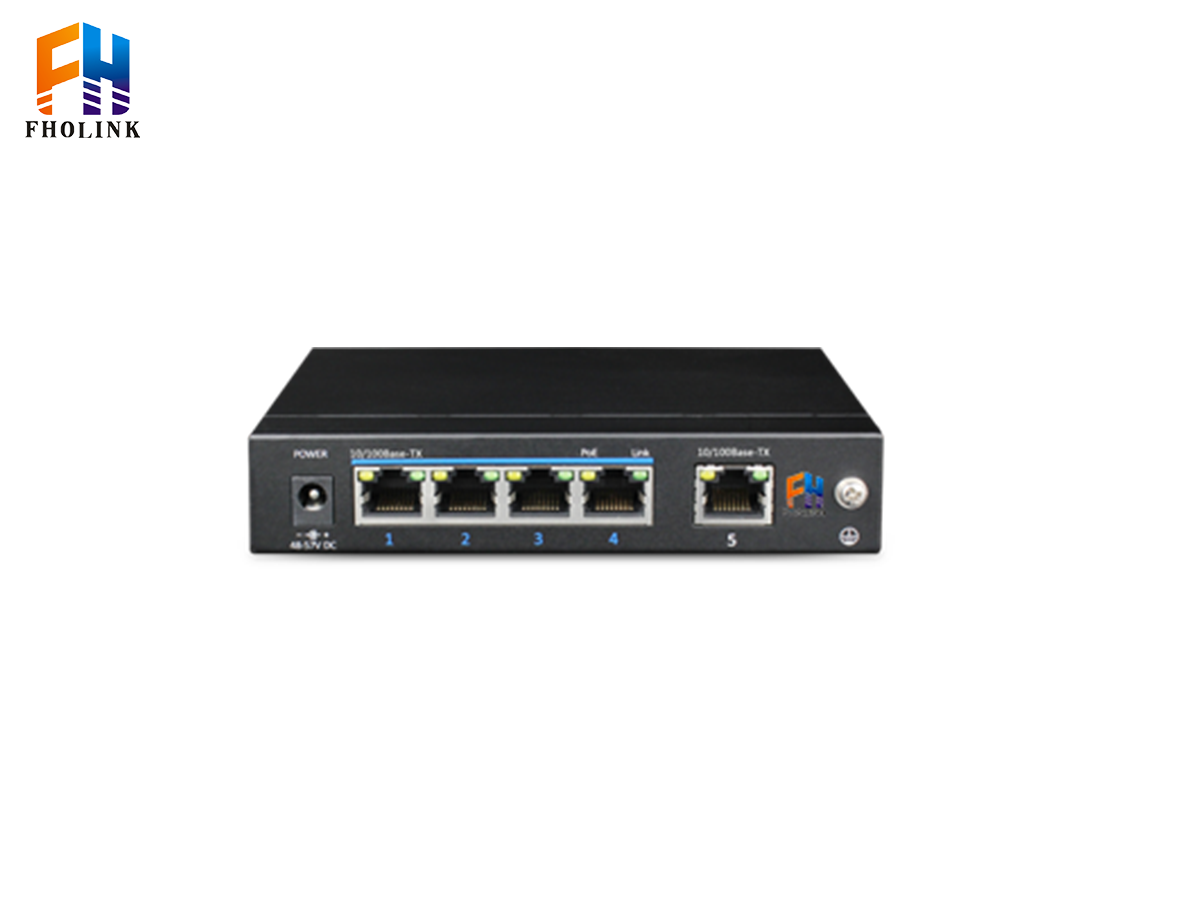

| Commercial Non-Managed PoE Switch | 4-Port Fast Ethernet PoE Switch | FH-PS410-1FT4PFT | Downlink Ports: 4 × 10/100Base-TX PoE+ RJ-45 (Auto MDI/MDI-X) Uplink Port: 1 × 10/100Base-TX RJ-45 (Auto MDI/MDI-X) Switching Capacity: 1 Gbps (Non-Blocking) Forwarding Rate: 0.7 Mpps |

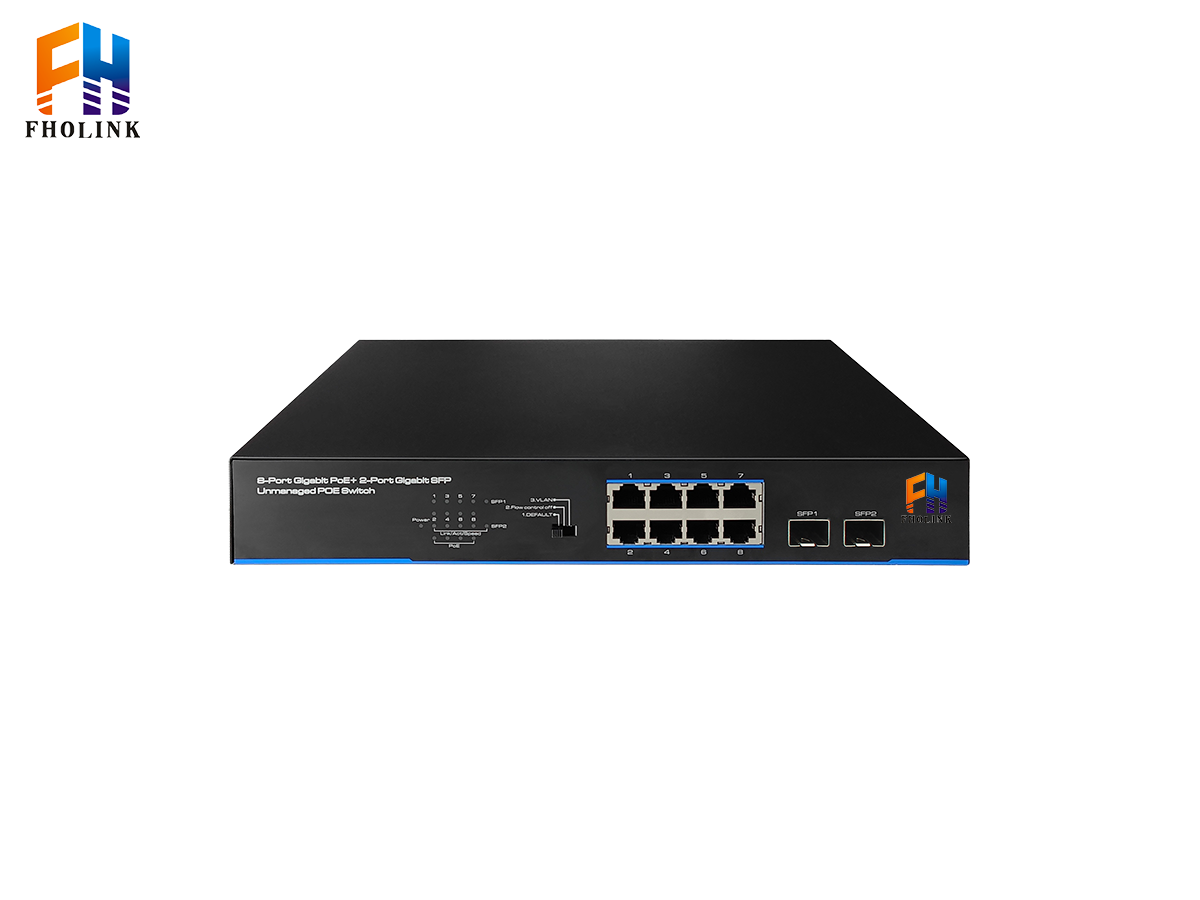

| 10-Port Gigabit PoE Switch | FH-PS410-1G1T8PT | Downlink Ports: 8 × 10/100/1000Mbps Auto-Negotiation Ethernet Ports (Auto MDI/MDIX) Uplink Ports: 2 × 1000BASE-X SFP Switching Capacity: 20 Gbps (Non-Blocking) Forwarding Rate: 14.88 Mpps |
|

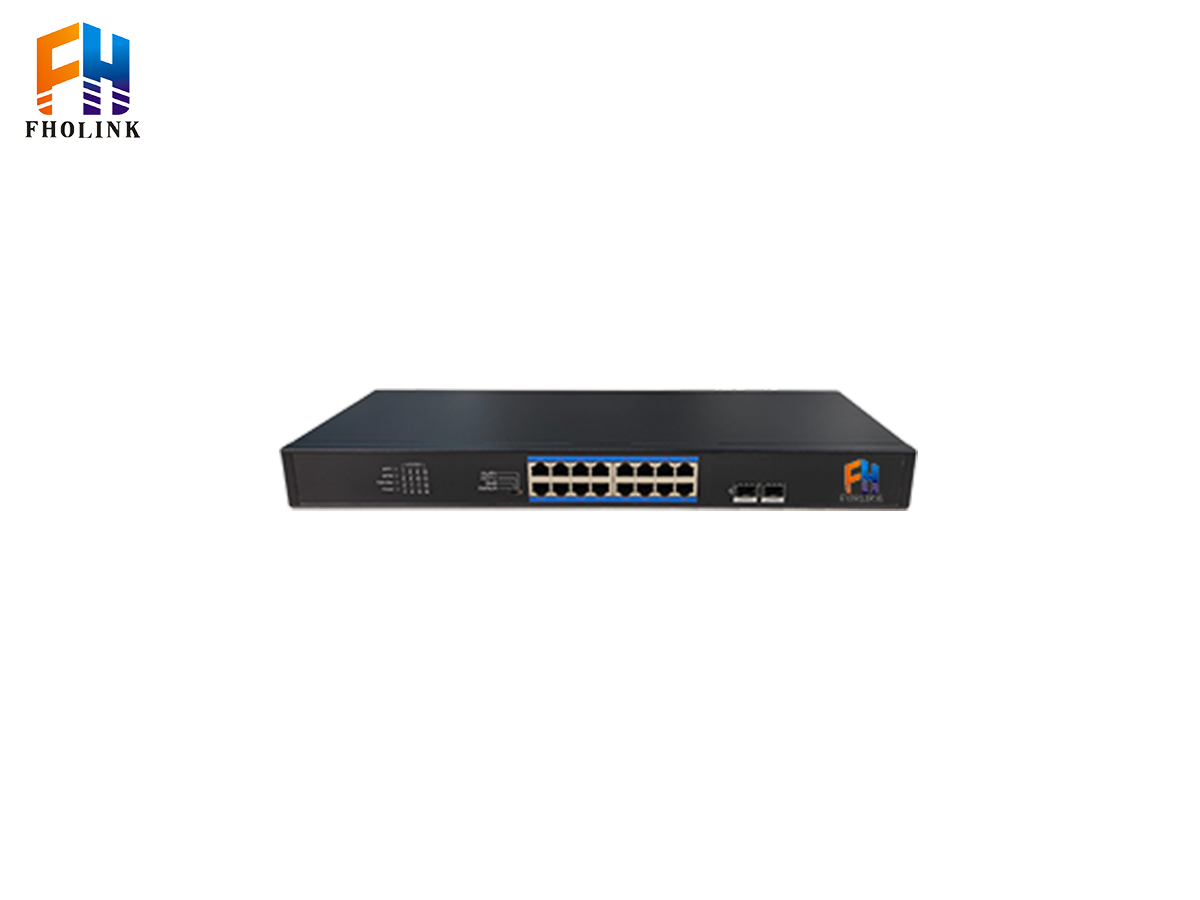

| 18-Port Gigabit PoE Switch | FH-PS410-2G16PT | Downlink Ports: 16 × 10/100/1000Base-T PoE+ RJ-45 (Auto MDI/MDI-X) Uplink Ports: 2 × 1000Base-X SFP Switching Capacity: 128 Gbps (Non-Blocking) Forwarding Rate: 23.6 Mpps |
|

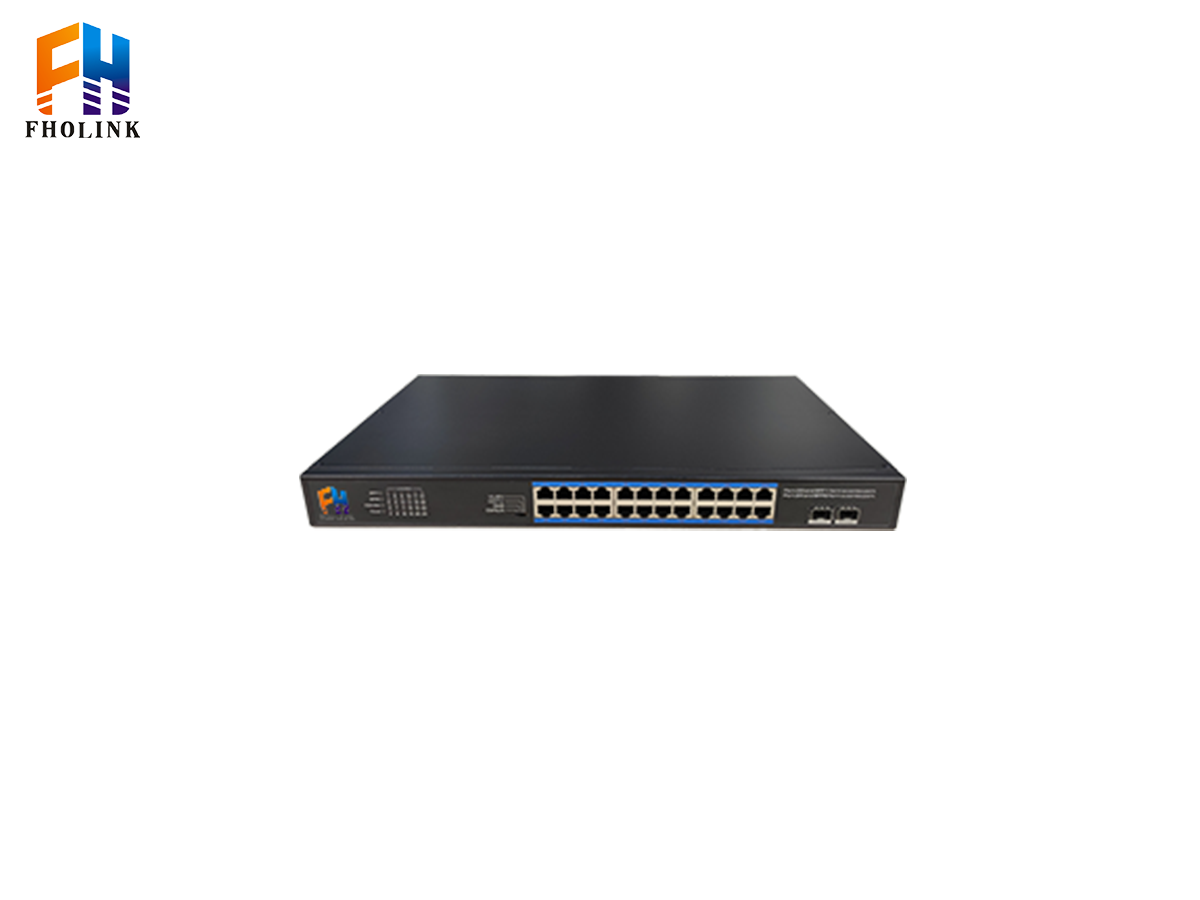

| 24-Port Gigabit PoE Switch | FH-PS410-2G24PT | Downlink Ports: 24 × 10/100/1000Base-T PoE+ RJ-45 (Auto MDI/MDI-X) Uplink Ports: 2 × 1000Mbps SFP Combo Switching Capacity: 156 Gbps (Non-Blocking) Forwarding Rate: 35.6 Mpps |
Applications
1. Campus networks
2. Medium and large enterprise networks
3. Network engineering
4. Security video surveillance projects
-
