PS420 Series: Commercial L 2 Managed PoE Switch
Product Overview
The Commercial Layer 3 Managed PoE Switch launched by Fuhong Guangtong Technology complies with the IEEE 802.3af/at PoE power supply standards. Equipped with Web-based Layer 2 management software and dedicated PoE management features, this product is ideally suited for network engineering and security video surveillance applications.
Features
1. Diverse port selection, including Fast Ethernet, Gigabit electrical, and optical ports
2. Web-based Layer 2 network management and PoE management functions
3. High-speed data forwarding, optimized for large video streams in security surveillance systems
4. Support for rapid ring networking with self-healing time under 20 ms
5. Temperature-controlled fan for adaptive cooling
6. Easy installation and operation, compatible with desktop, wall-mounted, and rack-mounted deployment
Technical Parameters
| Product Category | Device Name | Model | Specifications |

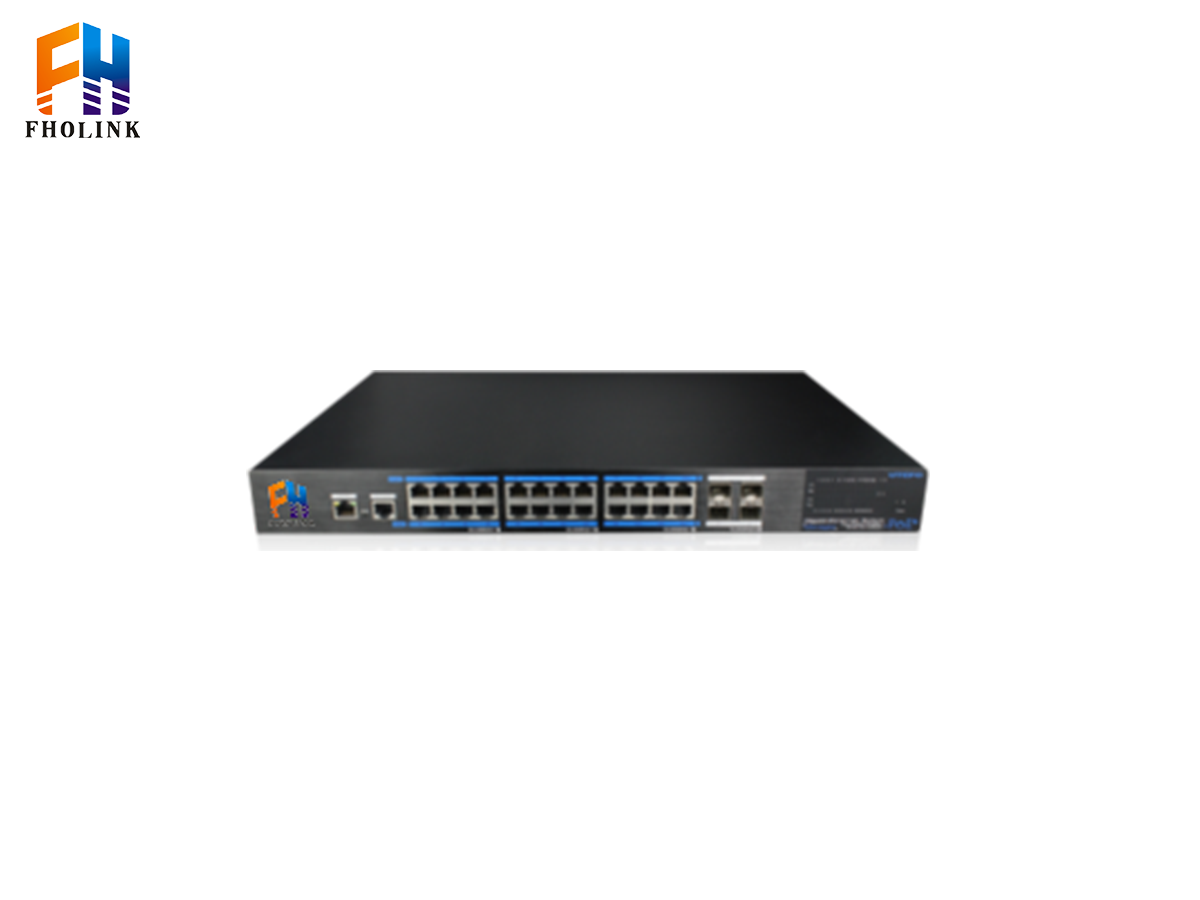

| Commercial Layer 2 Managed PoE Switch | 24-Port Gigabit PoE Layer 2 Managed Switch | FH-PS420-4G24PT-V | Rich Port Configuration: 24 downlink Gigabit PoE RJ45 ports, 4 uplink Gigabit SFP fiber ports Switching Capacity: 56 Gbps (non-blocking) Forwarding Rate: 41.7 Mpps Management Features: Web-based Layer 2 management and PoE management High-speed data forwarding: Ideal for high-traffic video transmission in security surveillance systems Input Voltage: 100-240V AC, 50/60 Hz Rapid Ring Network: Loop recovery time < 20 ms Temperature-Controlled Fan Easy Installation: Supports desktop, wall-mount, and rack-mount installation |
| 16-Port Gigabit PoE Layer 2 Managed Switch | FH-PS420-4G16PT-V | Port Configuration: 16 downlink Gigabit PoE RJ45 ports, 4 uplink Gigabit SFP fiber ports Switching Capacity: 40 Gbps (non-blocking) Forwarding Rate: 29.8 Mpps Management: Web-based Layer 2 management and PoE management High-speed Data Forwarding: Ideal for high-bandwidth video transmission in security surveillance applications Input Voltage: 100-240V AC, 50/60Hz (Auto-sensing) Rapid Ring Protocol: Loop recovery time < 20ms Temperature-Controlled Fan Flexible Installation: Desktop, wall-mount, and rack-mount compatible |
|

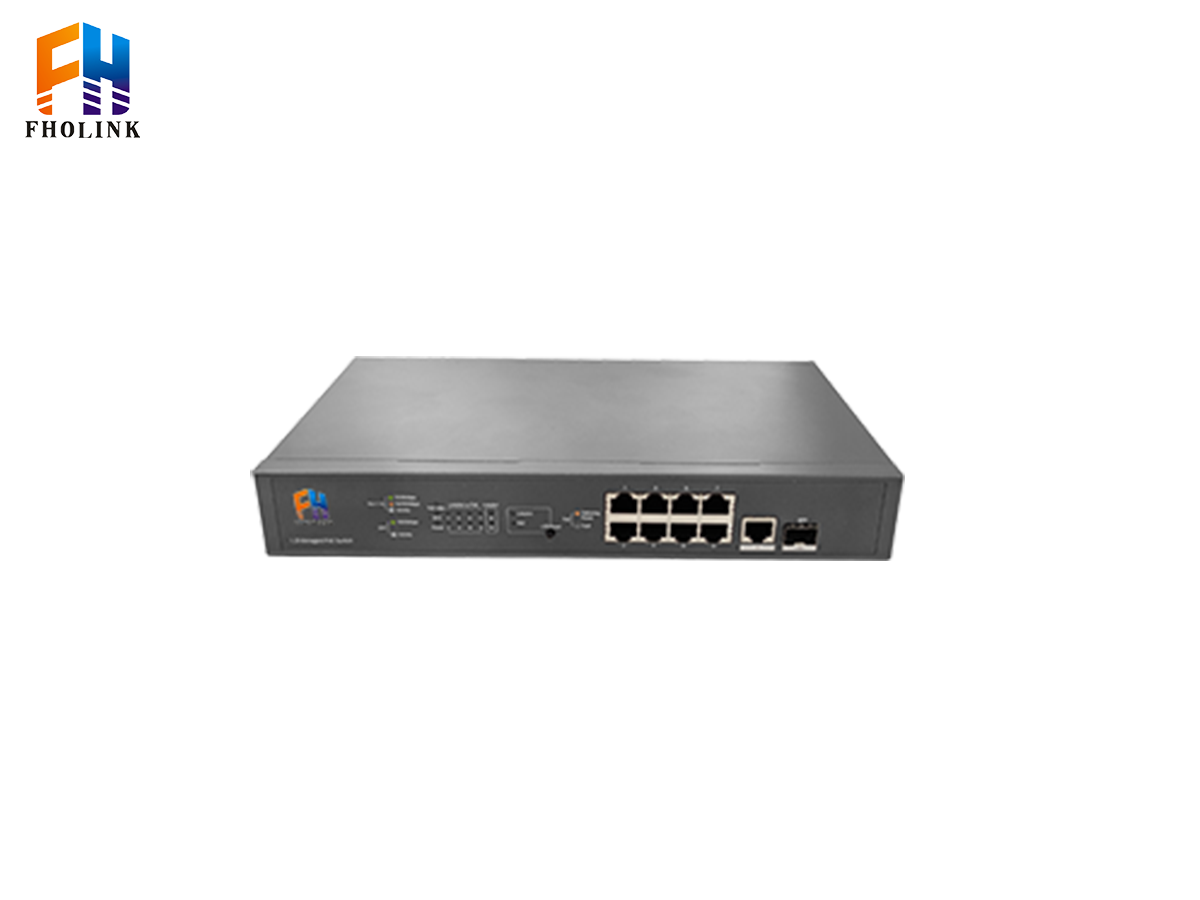

| 8-Port Gigabit PoE Layer 2 Managed Switch | FH-PS420-1G1T8PT-V | Downlink Ports: 8 × Gigabit Ethernet RJ-45 Uplink Ports: 1 × Gigabit Ethernet RJ-45 + 1 × Gigabit Ethernet SFP Switching Capacity: 20 Gbps (Non-Blocking) Forwarding Rate: 14.4 Mpps |
|

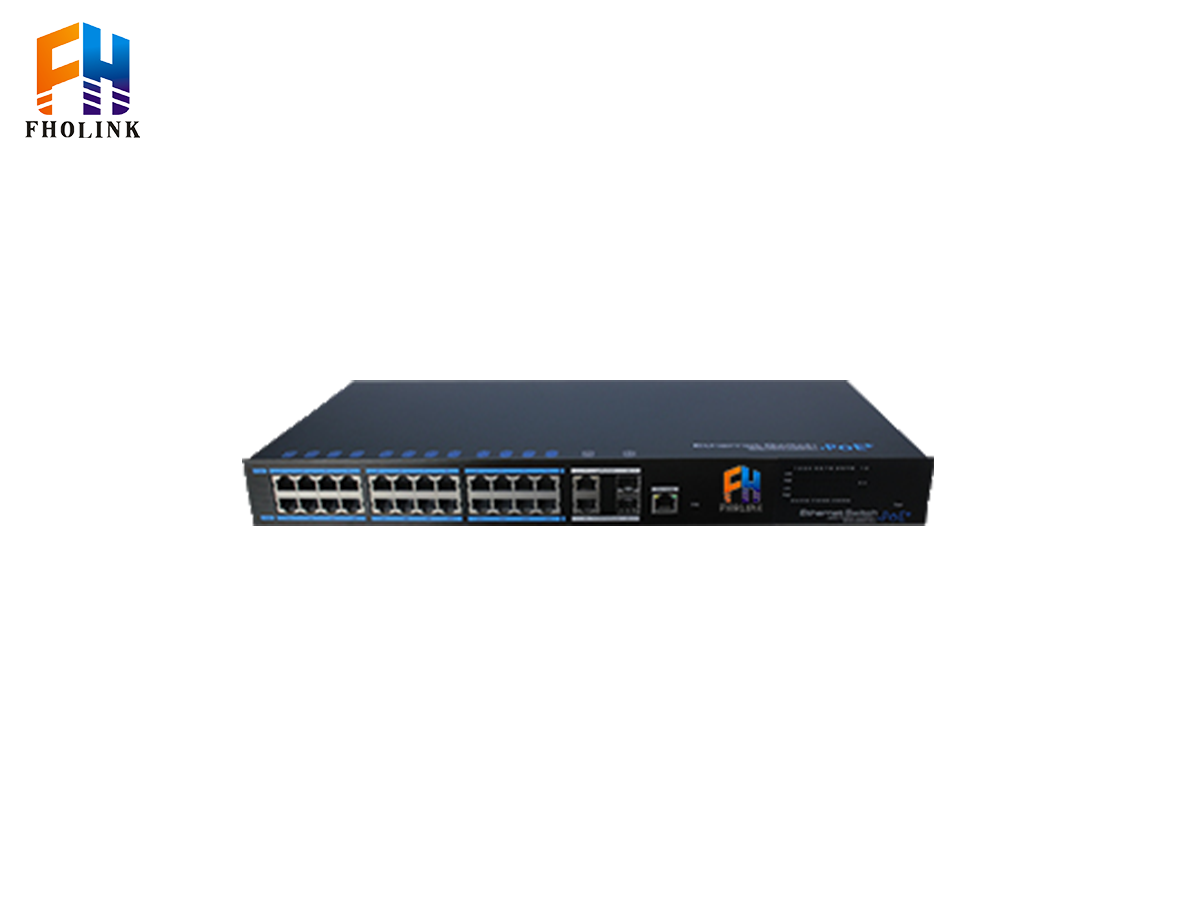

| 24-Port Fast Ethernet Layer 2 Managed PoE Switch | FH-PS420-2G2T24PFT-V | Downlink Ports: 24 × Fast Ethernet PoE RJ-45 Ports Uplink Ports: 2 × Gigabit SFP + 2 × Gigabit RJ-45 Switching Capacity: 12.8 Gbps Forwarding Rate: 9.52 Mpps PoE Standard: IEEE 802.3af/at (PSE) |
|

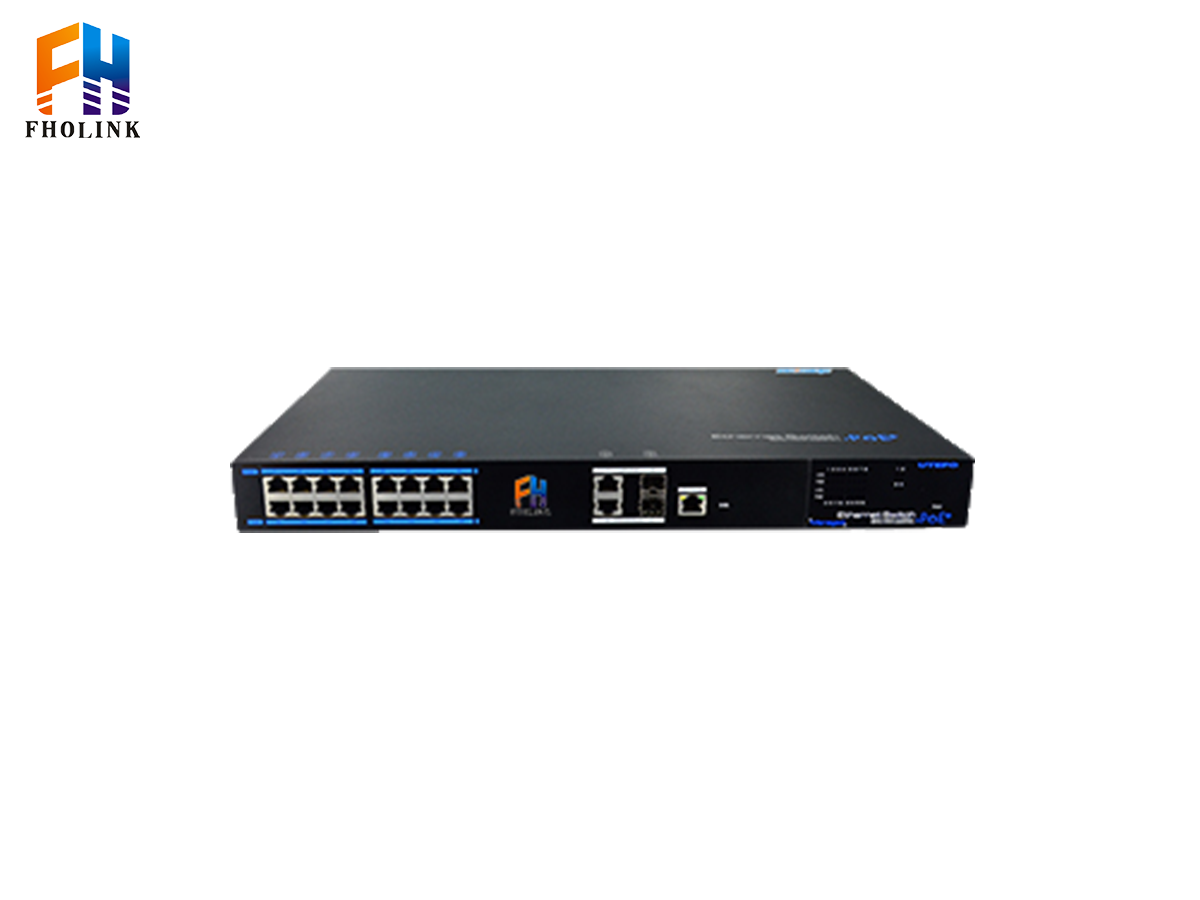

| 16-Port Fast Ethernet Layer 2 Managed PoE Switch | FH-PS420-2G2T16PFT-V | Downlink Ports: 16 × Fast Ethernet PoE RJ-45 Ports Uplink Ports: 2 × Gigabit SFP + 2 × Gigabit RJ-45 Switching Capacity: 11.2 Gbps Forwarding Rate: 8.33 Mpps PoE Standard: IEEE 802.3af/at (PSE) |
Applications
1. Campus networks
2. Medium and large enterprise networks
3. Network engineering
4. Security video surveillance projects
-
