PS430 Series: Commercial L 3 Managed PoE Switch
Product Overview
The commercial Layer 3 managed PoE switch launched by Fuhong Guangtong Technology is an enterprise-grade stackable routing switch with built-in fixed 10GbE uplink ports. It delivers strong performance in availability, scalability, security, and energy efficiency.
This fully managed switch offers high switching capacity, supports wire-speed Layer 2/Layer 3 forwarding, and delivers high routing performance for both IPv4 and IPv6 protocols. With support for VSF (Virtual Switch Framework), it simplifies network administration by allowing multiple switches to be virtualized into a single logical device, enabling information and data table sharing across different switches for enhanced reliability.
It provides high-performance, hardware-based IP routing. Protocols such as RIP, OSPF, and BGP enable dynamic routing by exchanging routing information with other Layer 3 switches and routers. It is an ideal solution for aggregation or access layers in campus networks, enterprise networks, government networks, and ISP networks.
Technical Parameters
| Product Category | Device Name | Model | Specifications |

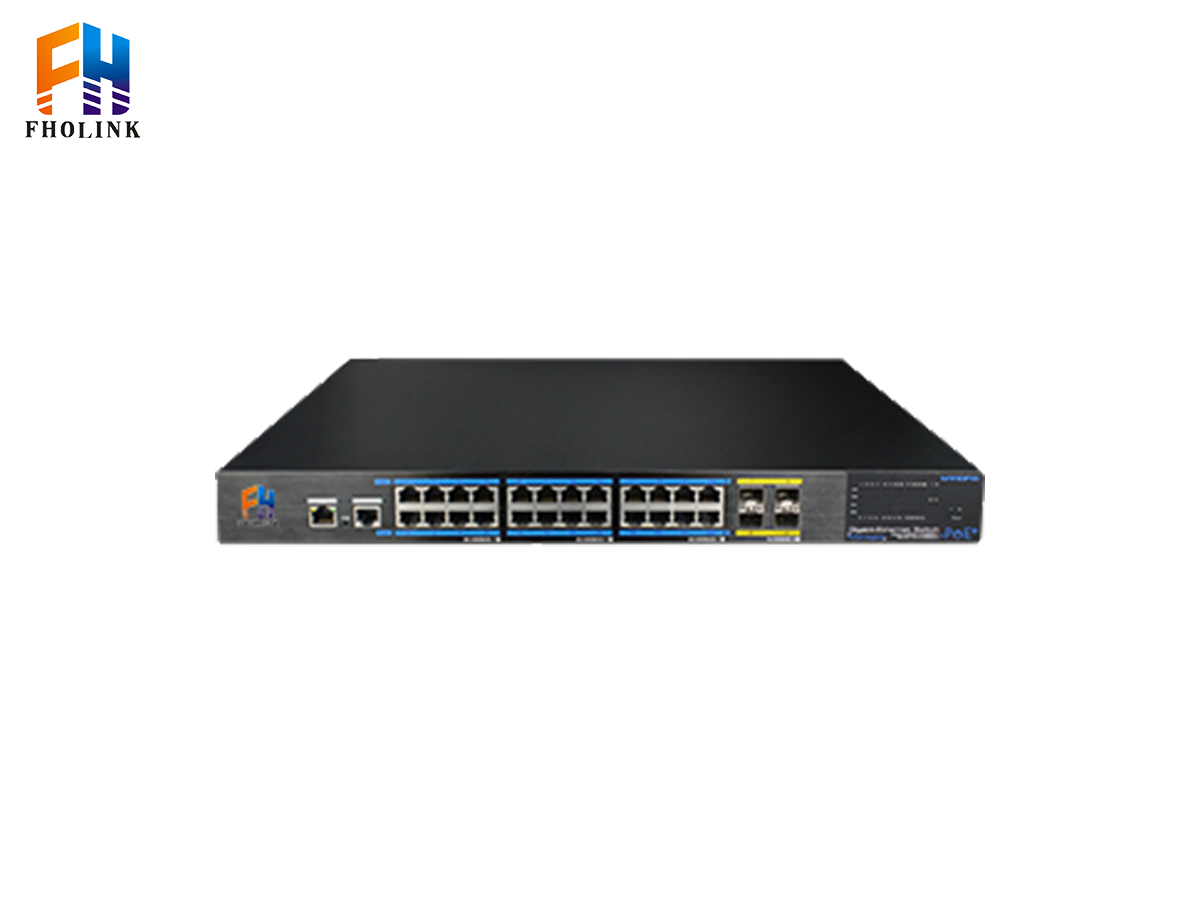

| Commercial Layer 3 Managed PoE Switch | 24-Port Gigabit PoE Layer 3 Managed Switch | FH-PS430-4M24PT-V | Downlink Ports: 24 × 10/100/1000Base-T PoE+ RJ45 Ports Uplink Ports: 4 × 1000/10GBase-X SFP+ Switching Capacity: 128 Gbps Forwarding Rate: 95 Mpps |

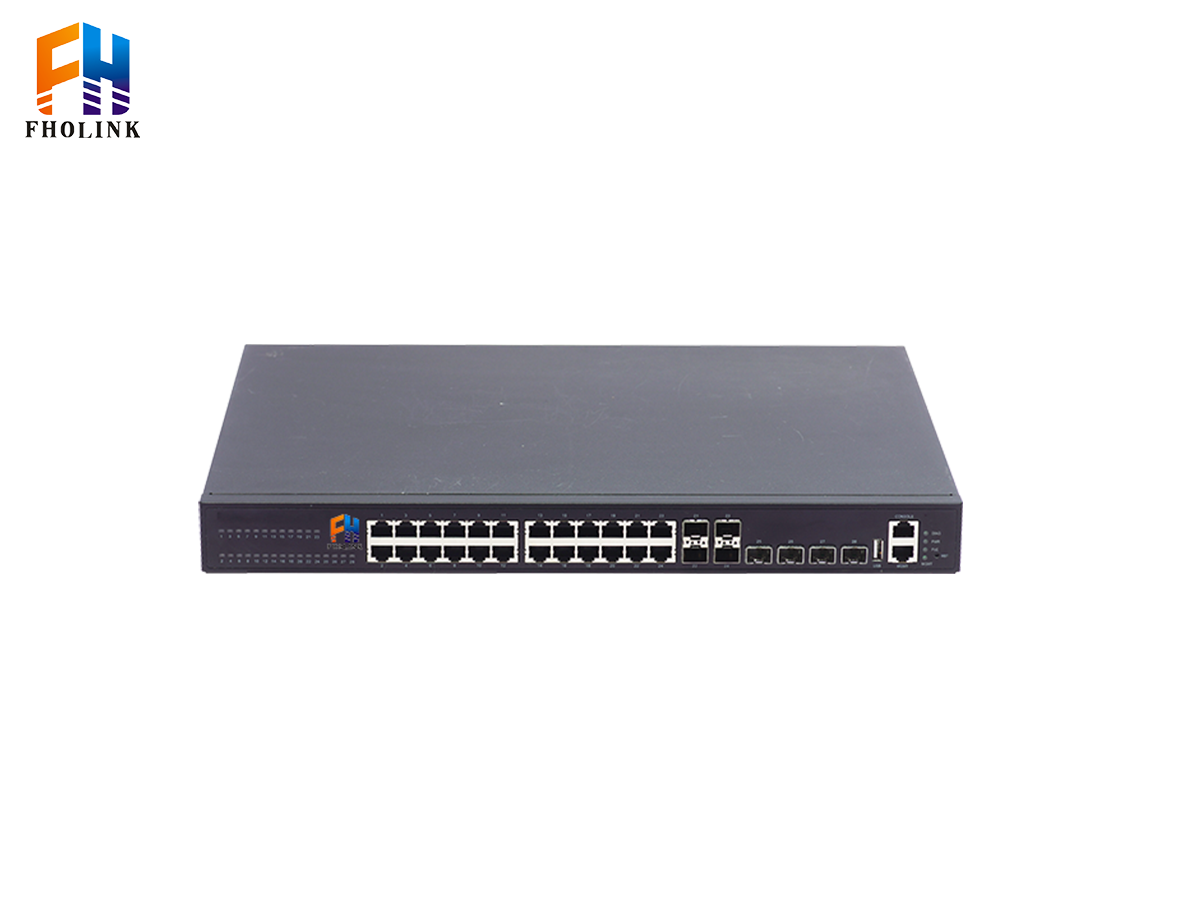

| 28-Port Gigabit/Fast Ethernet Hybrid PoE Layer 3 Managed Switch | FH-PS430-4M4CTG20PT-V | Downlink Ports: 20 × Gigabit PoE+ RJ45 Ports + 4 × 1000Mbps Combo Ports (RJ-45/SFP) Uplink Ports: 4 × 10-Gigabit SFP+ Fiber Ports Switching Capacity: 128 Gbps (Non-Blocking) Forwarding Rate: 95 Mpps |
|

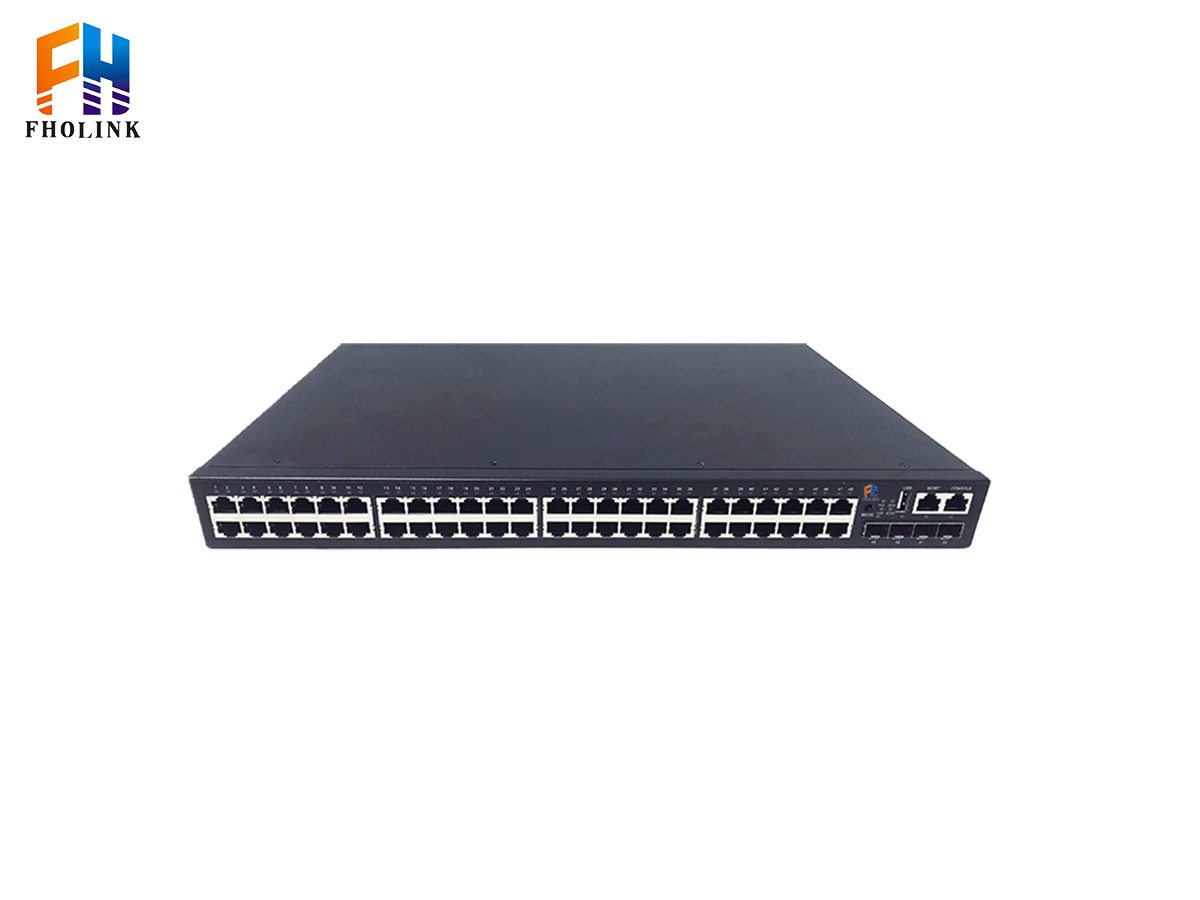

| 52-Port Gigabit/Fast Ethernet Hybrid PoE Layer 3 Managed Switch | FH-PS430-4M48PT-V | Downlink Ports: 48 × 10/100/1000Base-T PoE+ RJ-45 Uplink Ports: 4 × 10GBase-X SFP+ Switching Capacity: 176 Gbps (Non-Blocking) Forwarding Rate: 131 Mpps |
Product Applications
1. Campus networks
2. Medium and large enterprise networks
3. Government dedicated networks
4. Various metropolitan aggregation networks
-
