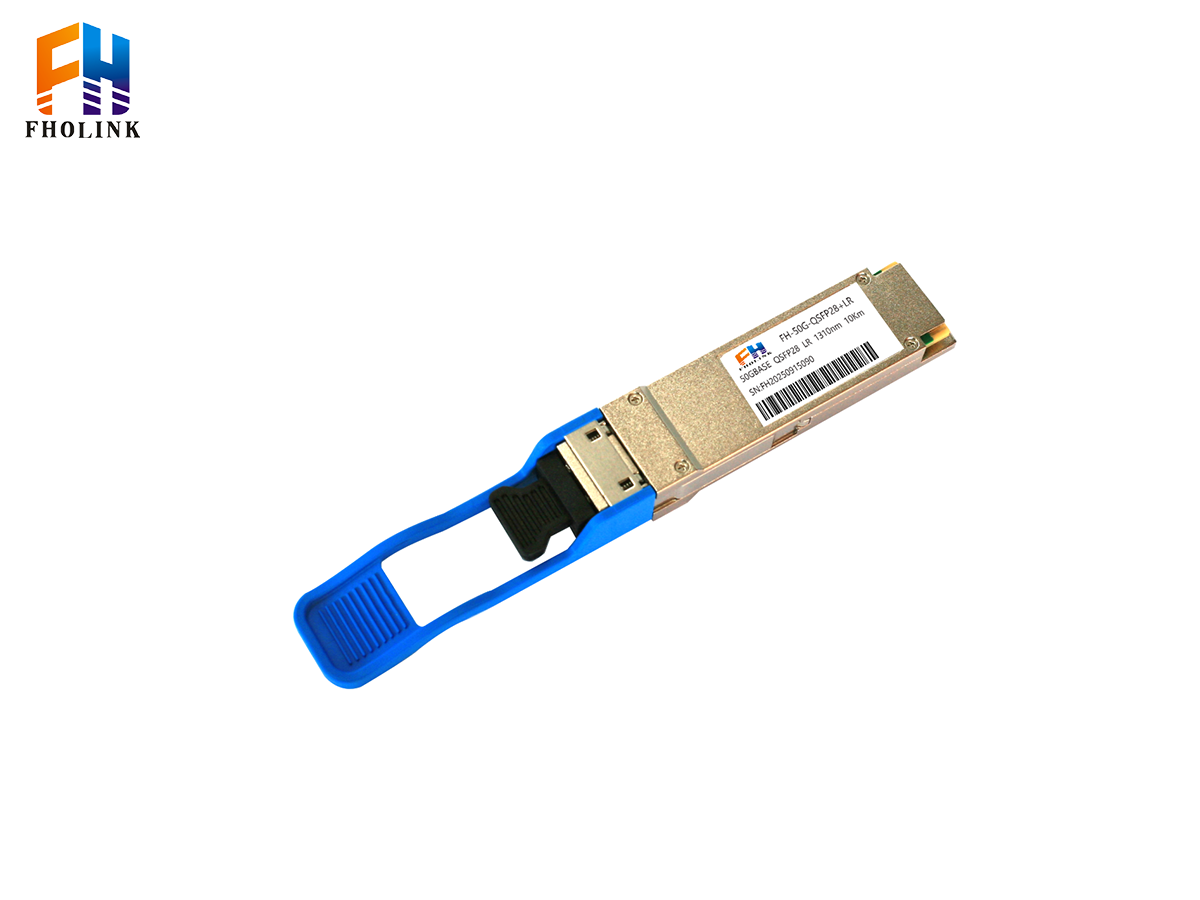

50GBASE-LR QSFP28 10km Duplex LC
Product Overview
With the popularization of 5G and the rapid development of AI technology, the volume of data transmitted over optical fiber networks continues to increase. Today, 50G optical modules are widely used for interconnections in data centers.
Fholink offers a variety of 50G QSFP28 optical modules, including single-mode single-fiber and single-mode dual-fiber types, with transmission distances covering 10km, 40km, and 80km.
Features
1. Supports hot-pluggable QSFP28 form factor, compliant with QSFP28 MSA standards.
2. Maximum rate up to 53.125 Gbit/s.
3. Supports 50G BASE Ethernet.
4. Low power consumption, single +3.3V power supply, maximum power consumption 6.5W.
5. Full metal housing provides excellent EMI performance.
6. Operating temperature: 0°C to +70°C.
7. Supports Digital Diagnostic Monitoring (DDM).
8. RoHS compliant (lead-free).
Technical Parameters
| 50G QSFP28 | |||||||||
| Product Name | model number | Data Rate | Wavelength | Distance | Optical Power (dBm) |
Source | Sensitivity (dBm) |
Receiver | Connector type |
| 50G Single-mode Dual-fiber | FH-50G-QSFP28+LR | 50Gb/s | 1310nm | 10km | -4.5～+4.2 | DML | -8.9 | PIN | Duplex LC |
| FH-50G-QSFP28+ER | 50Gb/s | 1310nm | 40km | +1.5～+8 | EML | -15 | APD | Duplex LC | |
| FH-50G-QSFP28+ZR | 50Gb/s | 1310nm | 80km | +2～+6.5 | EML | -28 | APD |   Duplex LC |
|
| 50G Single-mode Single-fiber | FH-50G-QSFP28+T27-10 | 50Gb/s | T1270/R1330 | 10km | -4.5～+4.2 | DML | -8.9 | PIN |       Simplex LC |
| FH-50G-QSFP28+T33-10 | 50Gb/s | T1330/R1270 | 10km | -4.5～+4.2 | DML | -8.9 | PIN |         Simplex LC |
|
| 50G Single-mode Single-fiber | FH-50G-QSFP28+T29-40 | 50Gb/s | T1295/R1309 | 40km | +1.5～+8 | EML | -15 | APD |           Simplex LC |
| FH-50G-QSFP28+T30-40 | 50Gb/s | T1309/R1295 | 40km | +1.5～+8 | EML | -15 | APD |       Simplex LC |
|
Applications
1. 50G BASE Ethernet networks.
2. Interconnections between switches within the same data center.
3. Interconnections between servers within the same data center.
4. Interconnections between servers and switches within the same data center.
5. High-density connections between other network devices.
6. High-performance computing clusters.
7. High-end servers.
-
