10G-XFP+BiDi Single Fiber Module 10/20/40/60/80/100km
Product Overview
10G optical modules are essential components in fiber optic transmission networks, primarily functioning to convert electrical signals into optical signals for transmission over fiber.
Fholink offers 10G optical modules available in 10G SFP+ and 10G XFP form factors, including single-mode and multi-mode variants, single-fiber and dual-fiber configurations, as well as CWDM and DWDM colored optical modules. Additionally, both commercial-grade and industrial-grade options are available, covering transmission distances from 300 meters to 100 km.
Features
1. Hot-pluggable SFP+ and XFP form factors
2. Supports 10G Ethernet
3. Digital Diagnostic Monitoring interface compliant with SFF-8472
4. Low power consumption <1W
5. Single 3.3V power supply
6. Full metal housing with excellent EMI performance
7. Operating temperature: 0°C to +70°C (case temperature)
8. Industrial-grade operating temperature: -40°C to +85°C
9. Digital Diagnostic Monitoring (DDM) support
10. RoHS compliant (lead-free)
Technical Parameters
| XFP BIDI 系列 | |||||||||
| Name | Model | 速率 Data Rate |
波长(nm) Wavelength |
距离Distance | 光功率(dBm) Optical Power | 发射激光器Source | 灵敏度(dBm) Sensitivity | 接收激光器Receiver | 接口类型Connector type |
| 10G XFP Single Fiber Module |
FH-XFP-T270-10 | 10Gbps | TX1270/RX1330 | 10km | -6~0 | DFB | <-14 | PIN |   LC/PC |
| FH-XFP-T33-10 | 10Gbps | TX1330/RX1270 | 10km | -6~0 | DFB | <-14 | PIN | LC/PC | |
| FH-XFP-T27-20 | 10Gbps | TX1270/RX1330 | 20km | -3~6 | DFB | <-14 | PIN |   LC/PC |
|
| FH-XFP-T33-20 | 10Gbps | TX1330/RX1270 | 20km | -3~6 | DFB | <-14 | PIN | LC/PC | |
| FH-XFP-T27-40 | 10Gbps | TX1270/RX1330 | 40km | 0~+6 | DFB | <-15 | PIN | LC/PC | |
| FH-XFP-T33-40 | 10Gbps | TX1330/RX1270 | 40km | 0~+6 | DFB | <-15 | PIN |   LC/PC |
|
| FH-XFP-T27-60 | 10Gbps | TX1270/RX1330 | 60km | +1~+6 | DFB | <-20 | APD | LC/PC | |
| FH-XFP-T33-60 | 10Gbps | TX1330/RX1270 | 60km | +1~+6 | DFB | <-20 | APD | LC/PC | |

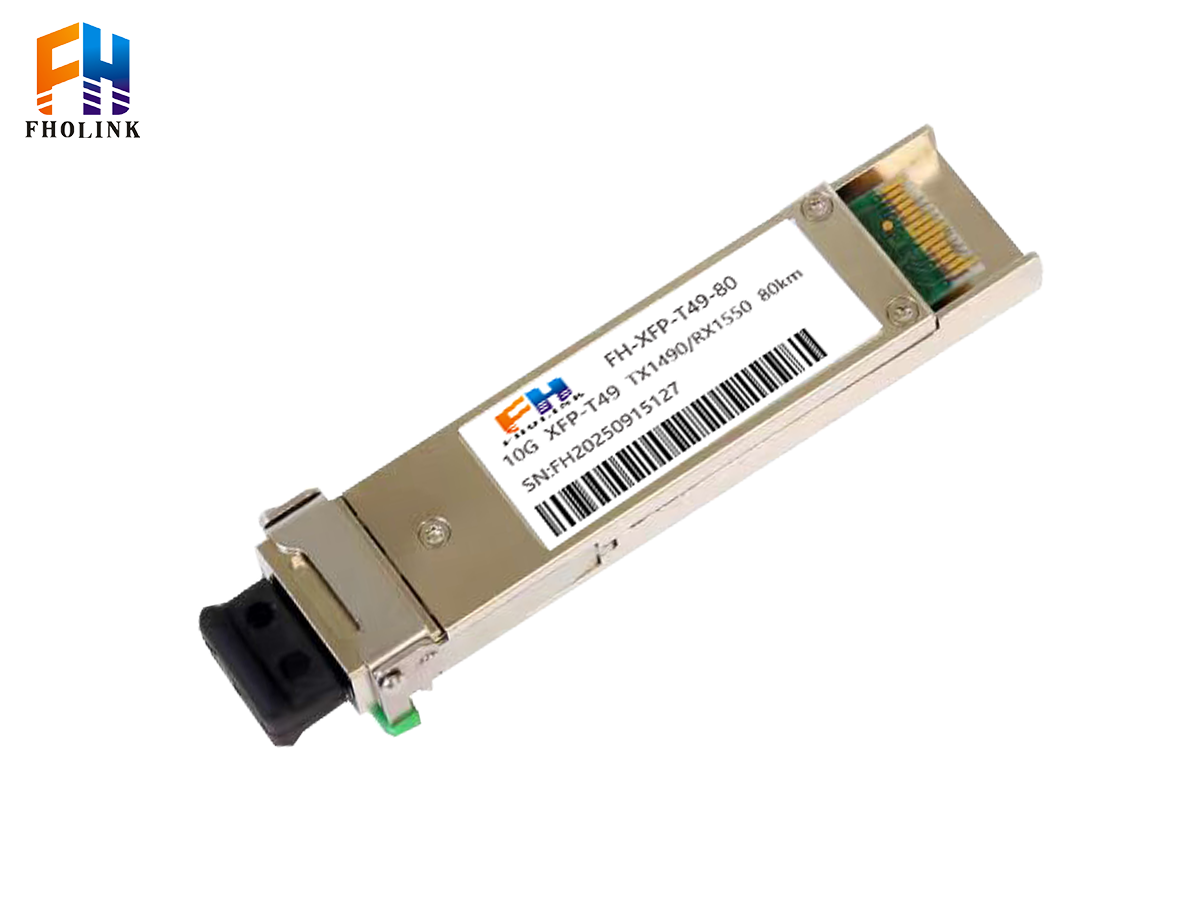

| FH-XFP-T49-80 | 10Gbps | TX1490/RX1550 | 80km | 0~+6 | EML | <-21 | APD | LC/PC | |

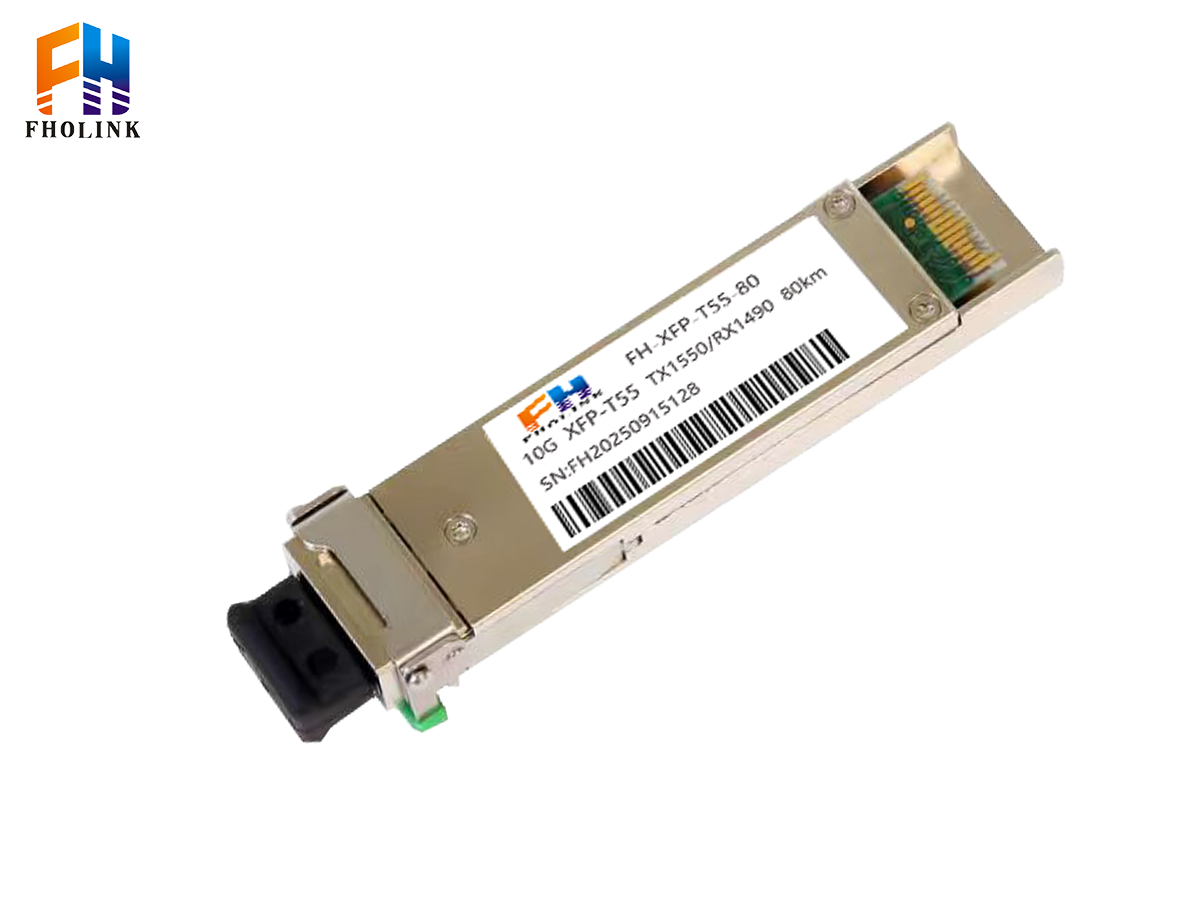

| FH-XFP-T55-80 | 10Gbps | TX1550/RX1490 | 80km | 0~+6 | EML | <-21 | APD | LC/PC | |
Applications
1. 10G Ethernet networks
2. 4G/5G base station fronthaul
3. 10-Gigabit switches
4. SDH and OTN optical transmission equipment
5. High-density connections between other network devices
-
