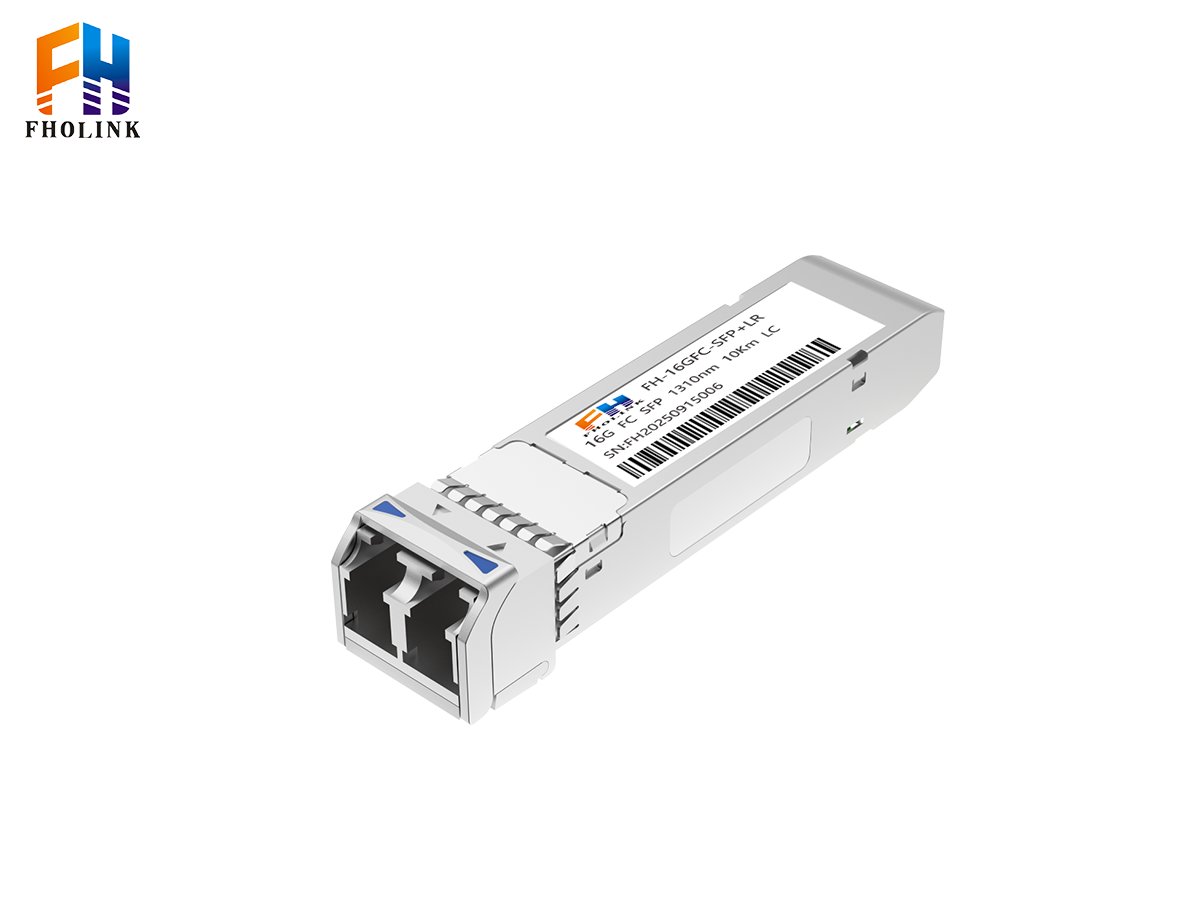

16GFC-SFP+LR 10km Fibre Channel SFP
Product Overview
With the widespread adoption of 5G and the gradual application of AI technologies, the demand for cloud storage and cloud computing has grown rapidly. The interconnection and data transmission between storage switches have also increased significantly. FC SAN storage optical modules are primarily used for interconnecting storage switches.
Fholink offers FC storage optical modules categorized by data rate into 8GFC-SFP, 16GFC-SFP, and 32GFC-SFP28 modules, with transmission distances covering a full range from 100 meters to 80 kilometers.
Features
1. Hot-pluggable SFP form factor
2. Compatible with various storage switches, ensuring strong applicability
3. Transmission rates include 8G/16G/32G Gbit/s
4. Full metal housing with excellent EMI performance
5. Operating temperature: 0°C to +70°C / -40°C to +85°C (case temperature)
6. Digital Diagnostic Monitoring (DDM) support
7. RoHS compliant (lead-free)
Technical Parameters
| Name | Model | 速率 Data Rate | 波长(nm) Wavelength | 距离Distance | 光功率(dBm) Optical Power | 发射激光器Source | 灵敏度(dBm) Sensitivity | 接收激光器Receiver | 接口类型 Connector type |
| 16G Fibre Channel SFP |
FH-16GFC-SFP+SR | 16Gbps | 850 | 100m | -6~-1 | VCSEL | <-10.5 | PIN |  DuplexLC/PC |
| FH-16GFC-SFP+LR | 16Gbps | 1310 | 10km | -6~0 | DFB | <-14.4 | PIN | DuplexLC/PC | |
| FH-16GFC-SFP+ER-1550 | 16Gbps | 1550 | 40km | -2~+4 | EML | <-16 | PIN | DuplexLC/PC | |
| FH-16GFC-SFP+ZR | 16Gbps | 1550 | 80km | 0~+5 | EML | <-23 | APD |  DuplexLC/PC |
|
| FH-16GFC-SFP+CW-10 | 16Gbps | 1270-1610 | 10km | -3~+5 | CWDM DML | <-12.5 | PIN | DuplexLC/PC | |
| FH-16GFC-SFP+CW-40 | 16Gbps | 1470-1610 | 40km | -2~+4 | CWDM EML | <-15 | PIN | DuplexLC/PC | |
| FH-16GFC-SFP+DW-10 | 16Gbps | CH16~61 | 10km | -2~+4 | DWDM EML | <-12.5 | PIN |  DuplexLC/PC |
|
| FH-16GFC-SFP+DW-40 | 16Gbps | CH16~61 | 40km | -2~+4 | DWDM EML | <-15 | APD | DuplexLC/PC |
Applications
1. Storage Area Network (SAN) switch interconnections
2. Server interconnections
3. Various storage service networks
-
