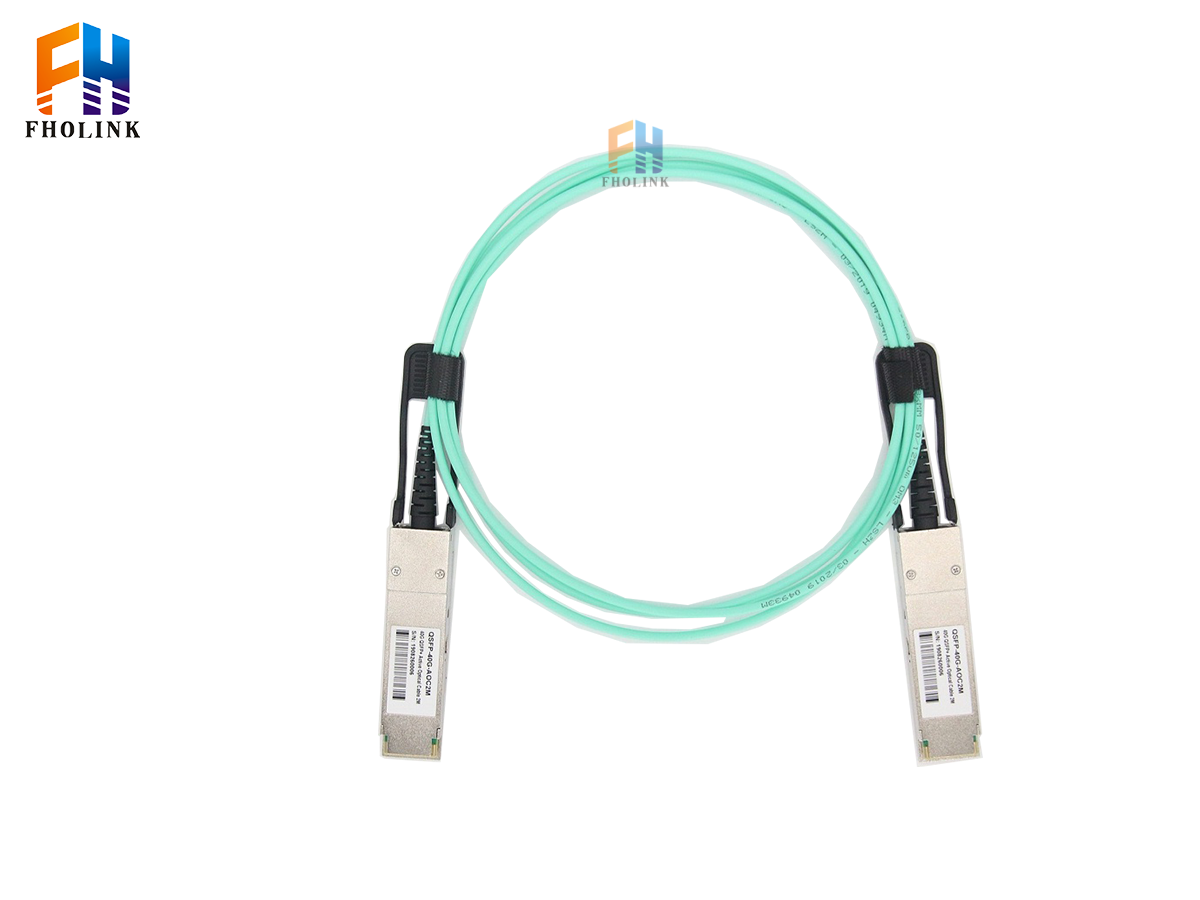

40G AOC (Active Optical Cable )
Product Overview
Active Optical Cable (AOC) is a high-performance, low-power, and cost-effective interconnection solution.
Composed of one optical cable and two optical transceivers, AOCs are widely used for short-distance interconnections in data centers.
The QSFP+ Active Optical Cable is a high-performance, low-power, and long-distance interconnection solution that supports InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G Fibre Channel, PCIe, and SAS. It complies with the QSFP MSA standard and IEEE P802.3ba standard. The QSFP AOC consists of four full-duplex channels, with each channel supporting data rates of up to 11.3 Gb/s and a total bandwidth of 45.2 Gb/s. As a parallel transceiver, QSFP+ AOC offers higher port density and overall system cost savings.
Features
1. Four-channel full-duplex active optical cable
2. Data transmission rate of up to 11.3 Gbit/s per channel
3. Reliable VCSEL array technology with multimode fiber
4. Standard lengths of 3, 5, 10, 15, 20, 30, 50, and 100 meters available
5. Low power consumption <1.5W
6. Operating temperature: 0°C to +70°C
7. Supply voltage: 3.3V
8. RoHS compliant (lead-free)
9. Hot-pluggable QSFP form factor
Technical Parameters
| Fholink 40G Active Optical Cable (AOC) | ||
| Model Number | Specifications | Fiber Type |
| FH-QSFP-AOC-XX | 40G QSFP+ to 40G QSFP+ Customizable length: 1m to 100m |
OM3 |
Applications
1. Switch interconnections within the same data center
2. Server interconnections within the same data center
3. Server-to-switch connections within the same data center
4. InfiniBand QDR/DDR/SDR
5. 40G Ethernet
6. 4G/8G/10G Fibre Channel
-
