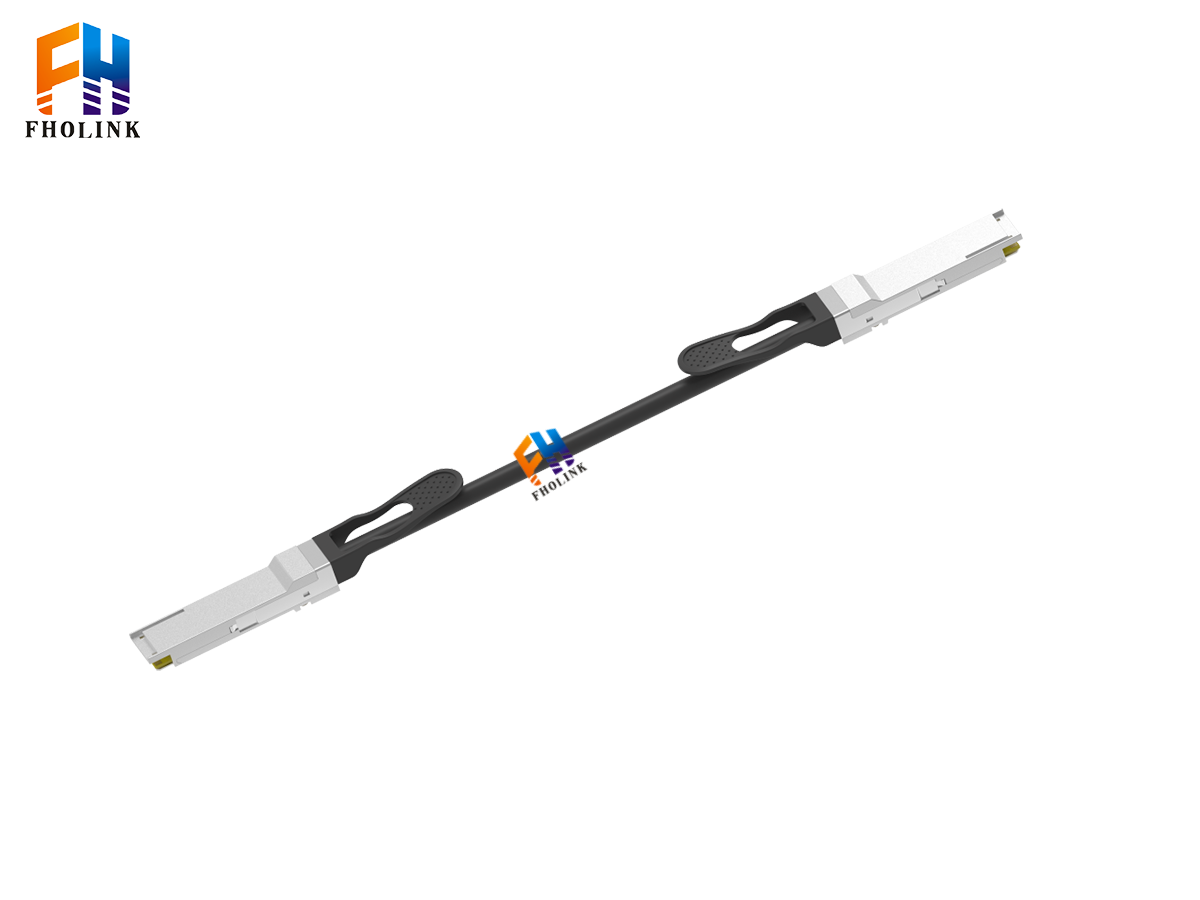

40G DAC (Direct Attach Copper Cable )
Product Overview
DAC (Direct Attach Copper) high-speed cables consist of two optical transceivers and a segment of copper cable.
The 40G DAC QSFP+ copper direct-attach cable is designed for very short-distance connections, providing a highly cost-effective solution for establishing 40G links between QSFP+ ports of switches within the same cabinet or adjacent cabinets. These cables are optimized for 40GbE and InfiniBand standards to deliver maximum performance. The QSFP+ form factor addresses the growing need for high-density interconnect solutions in modern data centers and high-performance computing environments, offering a total data bandwidth of 40Gb/s. The interconnection system fully complies with industry standards including QSFP MSA and IBTA (InfiniBand Trade Association), and supports the bandwidth requirements of both IEEE 802.3ba (40Gb/s) and InfiniBand QDR (4×10Gb/s) specifications.
Features
1. Hot-pluggable QSFP+ form factor
2. Maximum data rate up to 41.25Gbps
3. Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-CR4 standards
4. Compatible with Ethernet, Fibre Channel, and InfiniBand SDR/DDR/QDR standards
5. Available in cable sizes from 30AWG to 26AWG
6. I²C-based two-wire serial interface with customizable EEPROM signature
7. Operating temperature: 0°C to +70°C
8. Digital Diagnostic Monitoring (DDM) support
9. RoHS compliant (lead-free)
Technical Parameters
| Fholink 40G QSFP+ Direct Attach Copper Cable | |
| Product Model | FH-40G-DAC-xx |
| Data Rate | 40G |
| Transmission Distance | Length: Customizable from 1 to 5 meters |
| Form Factor | QSFP+ to QSFP+ |
| Cable Type | 30AWG/24AWG |
| Compatible Brands | Compatibility Code: Customized per customer's equipment |
| Cable Material | PVC |
| Power Consumption | 0.5W |
Applications
1. Interconnections between switches within the same data center
2. Interconnections between servers within the same data center
3. Server-to-switch connections within the same data center
4. High-density connections between other network equipment
5. 40G Ethernet networks
6. Switches/routers/HBAs in data storage and communication industries
7. Enterprise Storage Area Networks (SAN)
8. High-performance computing clusters
9. High-end servers
10. InfiniBand QDR and base station/BBU/RRU applications
-
