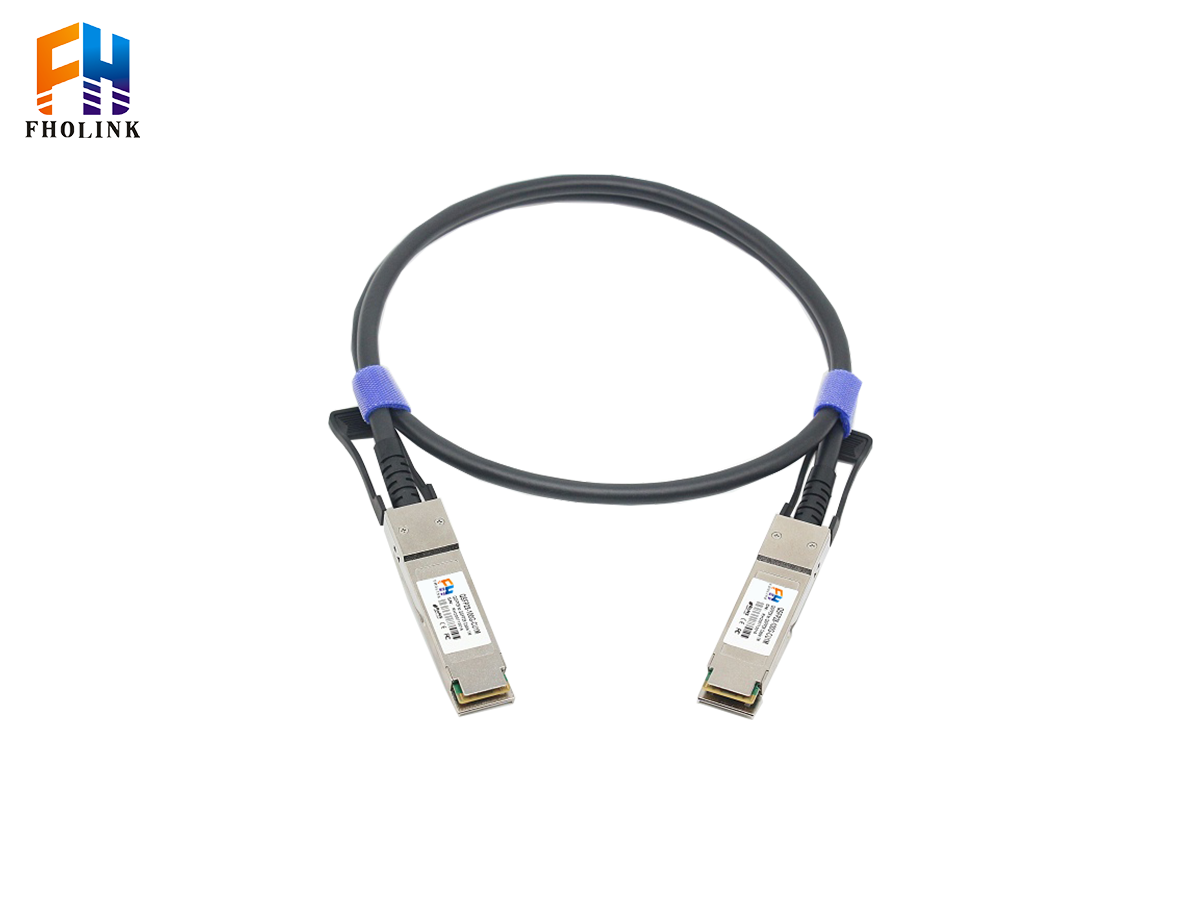

100G DAC (Direct Attach Copper Cable )
Product Overview
DAC (Direct Attach Copper) high-speed cables consist of two optical modules and a copper cable segment.
The 100G QSFP28 DAC high-speed cable, based on a 4×25G or 4×28G architecture, effectively meets the application requirements of next-generation 100G switches, servers, routers, and other equipment. With an optimized design to reduce crosstalk and insertion loss, the QSFP28 cable delivers excellent signal integrity and fully complies with next-generation 100G Ethernet and InfiniBand EDR standards.
Features
1. Hot-pluggable QSFP+ form factor compliant with SFF-8636
2. Maximum data rate up to 100Gbps
3. Supports IEEE 802.3bj (Ethernet)
4. Low crosstalk and low power consumption
5. Supports InfiniBand SDR, DDR, QDR, FDR, and EDR
6. Available in cable sizes from 30AWG to 26AWG
7. I²C two-wire serial interface for easy control and monitoring
8. Operating temperature: 0 to 70℃
9. Digital Diagnostic Monitoring (DDM) support
10. RoHS compliant (lead-free)
Technical Parameters
| Fholink 100G QSFP28 Direct Attach Copper Cable | |
| Product Model | FH-100G-DAC-xx |
| Data Rate | 100G |
| Transmission Distance | Length: Customizable from 1 to 5 meters |
| Form Factor | QSFP28 to QSFP28 |
| Cable Type | 30AWG/24AWG |
| Compatible Brands | Compatibility Code: Customized per customer's equipment |
| Cable Material | PVC |
| Power Consumption | 0.5W |
Applications
1. Switch interconnections within the same data center
2. Server interconnections within the same data center
3. Server-to-switch connections within the same data center
4. High-density connections between other network devices
5. 100G Ethernet networks
6. Data storage and communication industry switches/routers/HBAs
7. Enterprise network Storage Area Networks (SAN)
8. High-performance computing clusters
9. High-end servers
10. InfiniBand QDR and base station/BBU/RRU applications
-
