100M/Gigabit Aggregation and Divergence Device Series
Product Overview
The primary function of an aggregation and distribution device is to be connected in series or parallel within a network, where it copies or aggregates network traffic data from specified ports (optical or electrical) and outputs it through designated ports (optical or electrical). It can replicate data from one port into multiple outputs or aggregate data from multiple ports into a single output. Additionally, it features capabilities such as packet identification, filtering, and modification.
Product Applications
1. Data Centers
2. Network Police and Monitoring Dedicated Lines
3. Probe Systems
4. Signaling Collection
5. Operator Maintenance Analysis / Precision Marketing
6. Banking Transaction Business Analysis, Statistics, and Tracking Systems
7. Power Grid Information Security Systems
8. Government Dedicated Network Information Security Systems
Technical Parameters
| 100M/Gigabit Aggregation and Divergence Device Series | ||
| Device Name | Model | Specifications |

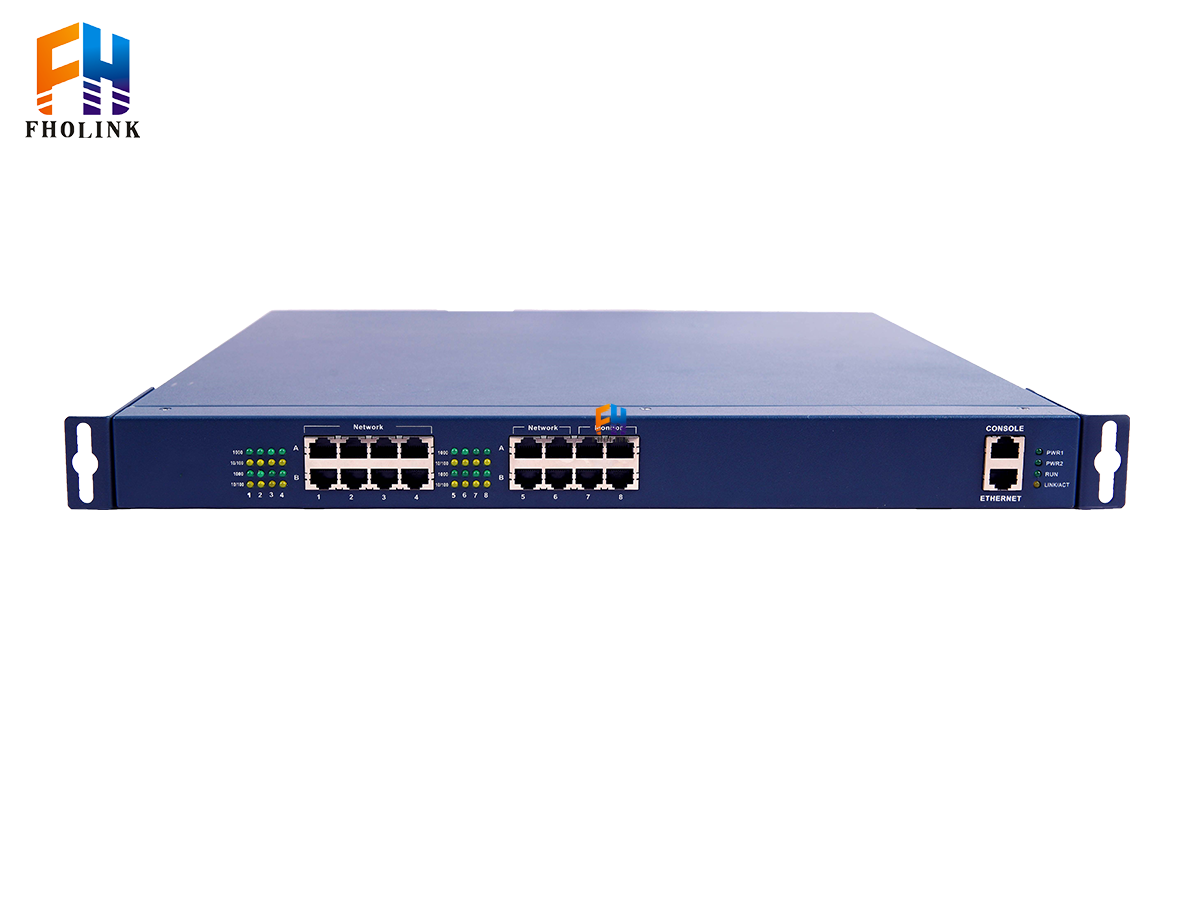

| 16-Port Ethernet Network Packet Broker | FH-CTAP-E16 | Ports: 16 x 10/100/1000M Ethernet Copper (RJ45), fully configurable Default Profiles: Network + Monitor side in 8+8 or 12+4 configurations Chassis: 1U, 19-inch rack-mountable Power Supply: Dual redundant, wide-range input (-36~-72V DC / 100~240V AC) |

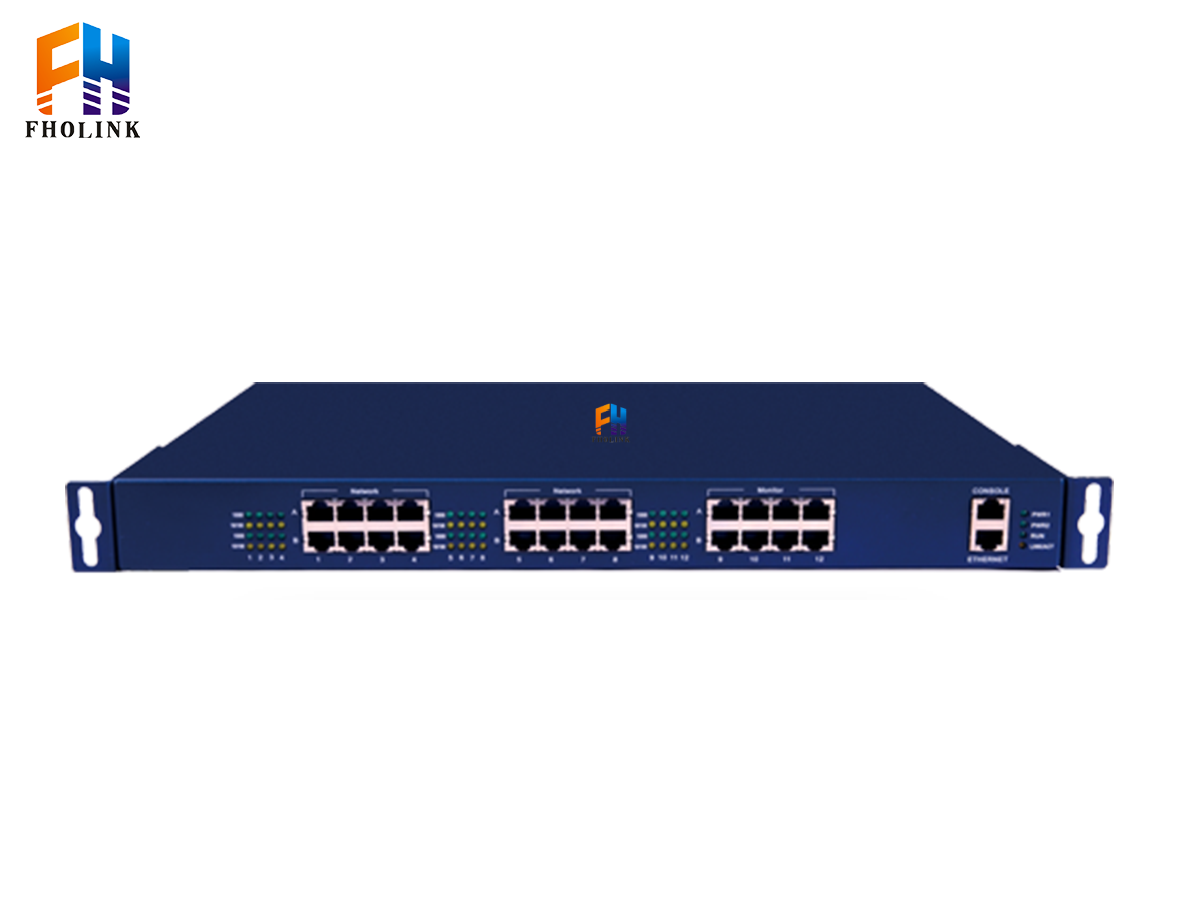

| 24-Port Ethernet Network Packet Broker | FH-CTAP-E24 | Ports: 24 x 10/100/1000M Ethernet Copper (RJ45), fully configurable Default Profile: Network side + Monitoring side in a 16+8 configuration Form Factor: 1U, 19-inch rack-mountable Power Supply: Dual redundant, auto-switching ( -36~-72V DC / 100~240V AC ) |
| 8xRJ45 + 8xSFP Network Packet Broker | FH-CTAP-E8G8 | Network Side: 8 x GE/FE Ethernet ports Supports inline (bidirectional) deployment Power-off bypass (Fail-open) functionality Monitoring Side: 8 x SFP slots (optical modules not included) Chassis: 1U, 19-inch rack-mountable Power Supply: Dual redundant, auto-selecting input (-36~-72V DC / 100~240V AC) |

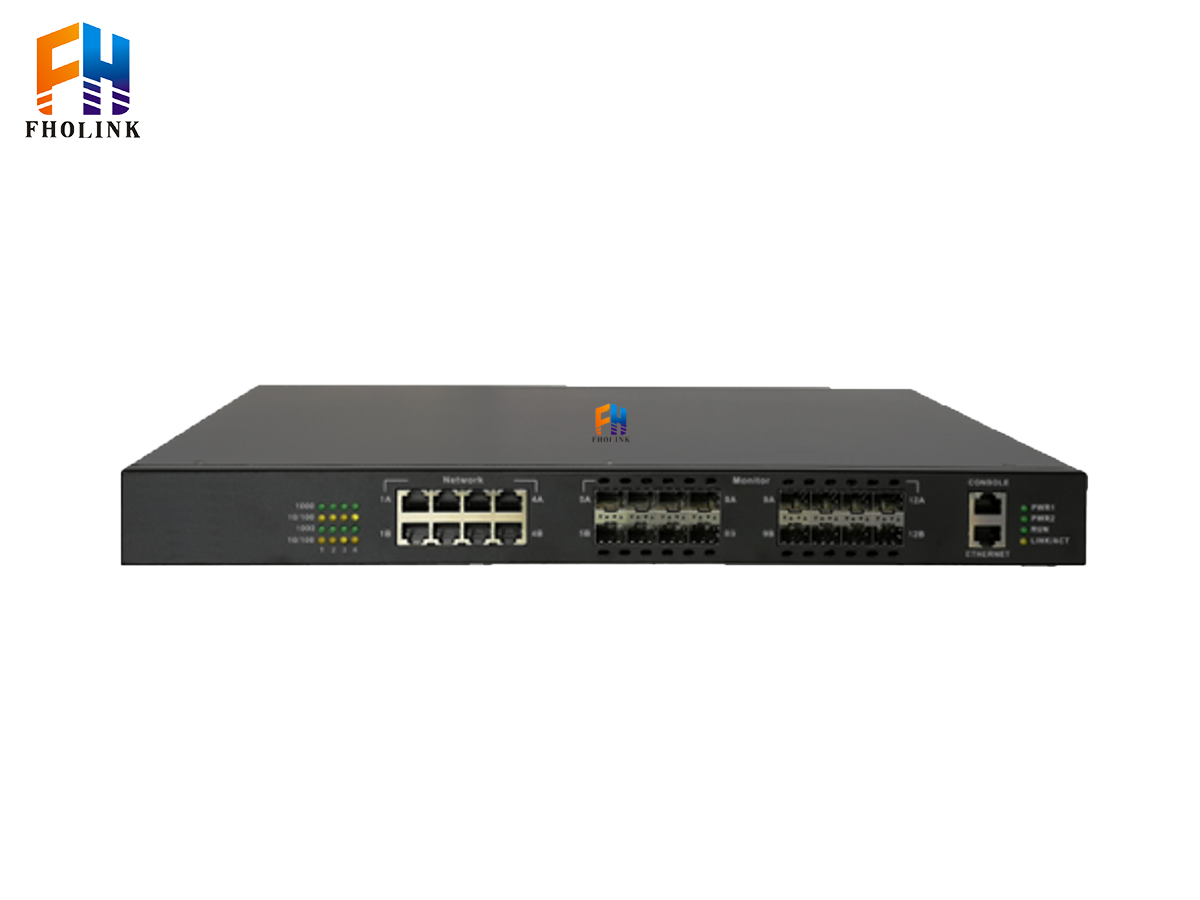

| 8xRJ45 + 16xSFP Network Packet Broker | FH-CTAP-E8G16 | Network Side: 8 × GE/FE Ethernet ports Inline bidirectional deployment Power-off bypass (Fail-open) Monitoring Side: 16 × SFP slots (optical modules not included) Chassis: 1U, 19-inch rack-mountable Power Supply: Dual redundant, wide-range input (-36~-72V DC / 100~240V AC) |
-
