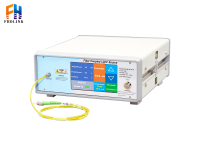

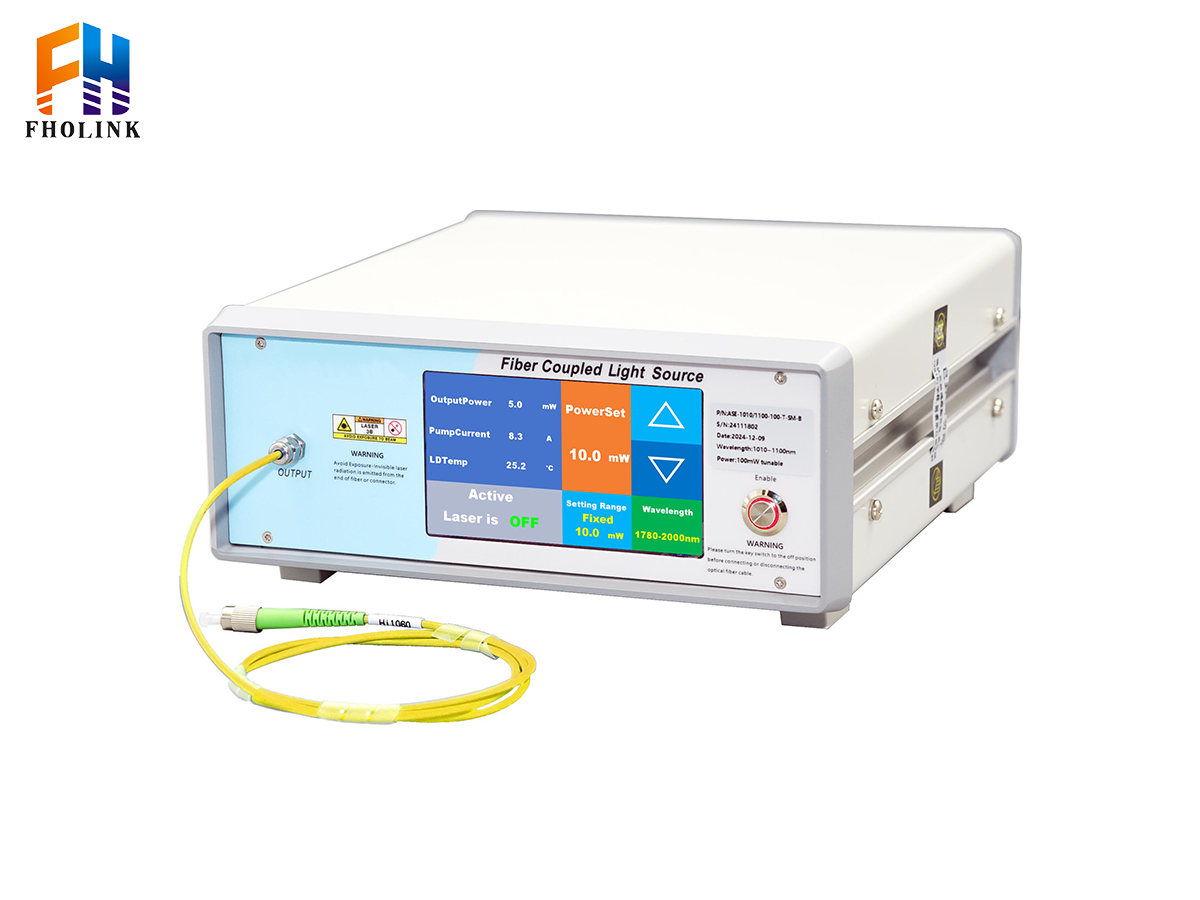

1560 nm Band Femtosecond Pulsed Fiber Laser
Product Overview
The Fholink E-Fiber Series Ultrafast Laser integrates the latest femtosecond laser technology. It utilizes high-performance rare-earth-doped fiber as the gain medium, combined with high-precision dispersion compensation technology and an active servo system to achieve stable output of femtosecond pulsed laser in the 1560 nm band. It features one-button self-starting upon power-on, long-term stable operation with no required maintenance, and characteristics such as extremely narrow laser pulse width and high peak pulse power. It has wide applications in fields such as optical frequency combs, supercontinuum generation, and Terahertz (THz) waves.
Customization of pulse width, power, repetition rate, and other parameters is available.
Product Features
1. Minimum pulse width of 50 fs.
2. Self-starting and maintenance-free.
3. Fully polarization-maintaining, high stability.
Technical Parameters
| Parameter | Unit | Typical Value | Remarks | |
| Wavelength | nm | 1560±10 | ||
| Spectral Width | nm | 20 | 60 | |
| Pulse Width | fs | 50/100/200/500 | Customizable | |
| Output Power | mW | 1~120 | Customizable | |
| Power Instability | - | < ±1% | ||
| Repetition Rate | MHz | 80/100 | ||
| Repetition Rate Instability | Hz | < 100 | ||
| Single Pulse Energy | nJ | >1 | ||
| Polarization State | - | Linear Polarization | ||
| Output Fiber Type | - | Polarization-Maintaining Fiber0.5m | Polarization-Maintaining Fiber2m | |
| Optical Connector Type | - | FC/APC connector with slow-axis alignment slot | ||
| Warm-up Time | min | < 1 | ||
| Package Form | / | Benchtop or Module Type | ||
Product Applications
1. University and Scientific Research.
2. Optical Frequency Combs.
3. Supercontinuum Generation.
4. Terahertz (THz) Waves.
5. Ultrafast Laser Phenomena.
-
