FPV (W5) Drone-Specific Optical Transceiver, supports the transmission of 1 channel of video signal.
Product Overview
The FPV (W5) Drone-Specific Optical Transceiver employs a cost-effective domestic FPGA and fiber optic transmission technology to enable long-distance, lossless transmission of CVBS video signals and TTL control signals, ensuring smoother video output. It supports transmission distances of up to 120 kilometers, making it suitable for complex electromagnetic environments such as drone racing, aerial photography, and industrial inspection.

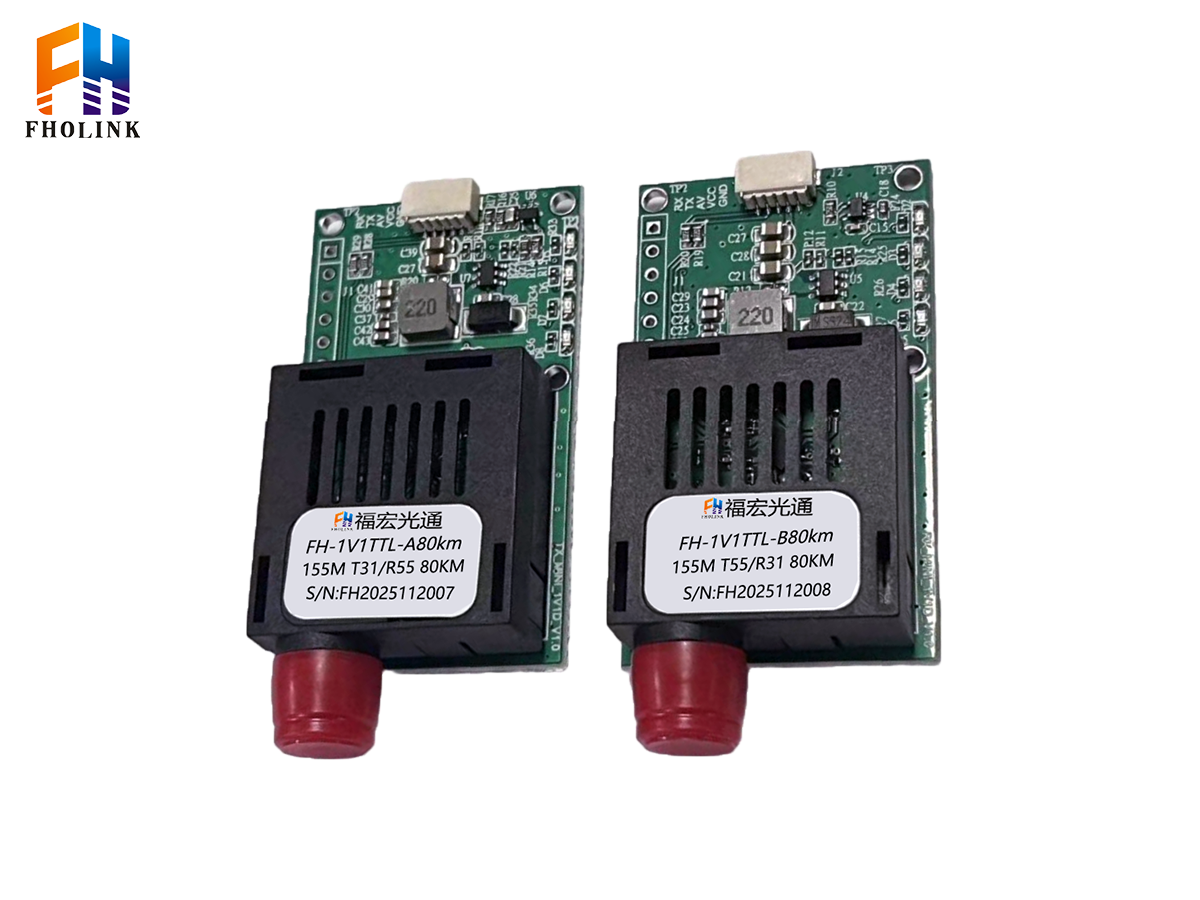

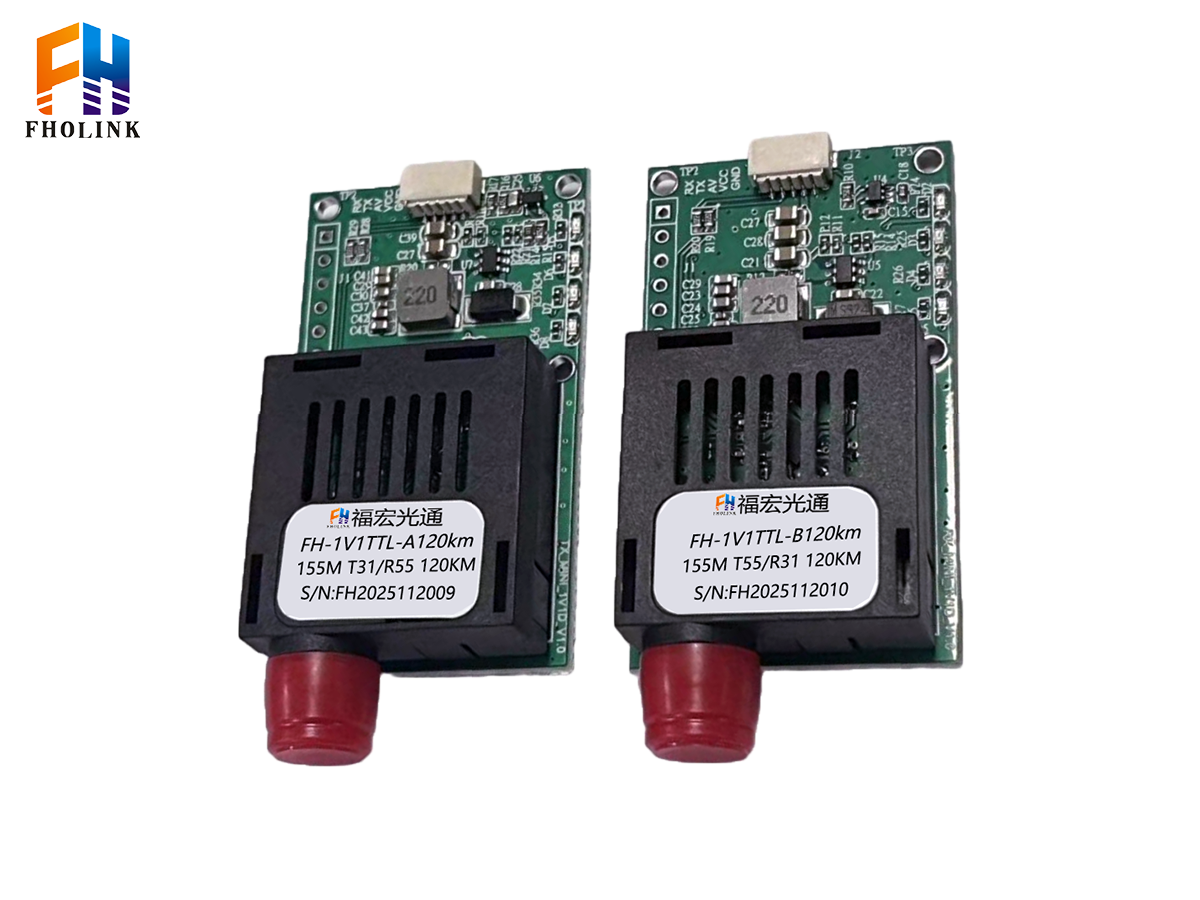

The product consists of two paired units: an Air Unit (TX 1310 nm) and a Ground Unit (RX 1550 nm). The Air Unit connects to the drone, while the Ground Unit connects to the controller. Utilizing optical fiber as a high-speed, low-latency data transmission medium, it enables the real-time transmission of high-definition video footage captured by the drone back to the ground control station, providing pilots with an immersive flight experience. Leveraging fiber's ultra-large bandwidth, exceptional resistance to interference, and extremely low latency significantly enhances the performance and application scope of FPV drones.
Features
1. Compatible with analog/CVBS cameras.
2. Uses single-mode, single-fiber optic media with FC connectors as default.
3. Optical communication technology effectively resists electromagnetic interference.
4. Operating temperature range: -20°C to +70°C.
5. Safe, reliable, stable performance, and lightweight design.
6. Strong anti-interference capability, large transmission bandwidth, and long-distance transmission.
7. Supports simultaneous transmission of CVBS video signals and TTL/UART control signals.
Product Specifications
| Optical Transmission Module - Air End (OTM-SSD) | ||||
| Power Supply | DC5V~16V | Product Dimensions | 54.5 * 29 * 13 mm | |
| Operating Temperature | -20~70℃ | Storage Temperature | -40~80℃ | |
| Power Consumption | < 3W | Fiber Optic Interface | FC | |
| Fiber Type | Single-Mode, Single-Fiber |
Data Interface | SH1.0* 5PIN | |
| Data Rate | 100Mbps | Video Standard | NTSC/PAL | |
| Operating Wavelength | 1310nm/1550nm | Data Direction | Unidirectional | |
| Transmission Distance | 0~120km | Data Format | TTL(UART) | |
| Optical Transmission Module - Ground End (OTM-GSD) | ||||
| Power Supply | DC5V~16V | Product Dimensions | 54.5 * 29 * 13 mm | |
| Operating Temperature | -20~70℃ | Storage Temperature | -40~80℃ | |
| Power Consumption | < 3W | Fiber Optic Interface | FC | |
| Fiber Type | Single-Mode, Single-Fiber |
Data Interface | SH1.0* 5PIN | |
| Data Rate | 100Mbps | Video Standard | NTSC/PAL | |
| Operating Wavelength | 1550nm/1310nm | Data Direction | Unidirectional | |
| Transmission Distance | 0~120km | Data Format | TTL(UART) | |
Product Applications
1. Drone Signal Transmission (Video/Control Data Backhaul)
2. Drone Racing
3. Drone Aerial Photography
4. Industrial Inspection
Product Ordering
FH-1V1TTL-A20km: Drone Optical Module Air Unit (TTL Optical Transceiver, FC Interface, 20 km)
FH-1V1TTL-B20km: Drone Optical Module Ground Unit (TTL Optical Transceiver, FC Interface, 20 km)
FH-1V1TTL-A40km: Drone Optical Module Air Unit (TTL Optical Transceiver, FC Interface, 40 km)
FH-1V1TTL-B40km: Drone Optical Module Ground Unit (TTL Optical Transceiver, FC Interface, 40 km)
Fholink supports customization for additional distance specifications, such as 60km/80km/100km/120km.
(Note: The product is used in pairs. Units ship with FC connectors by default. When ordering, please specify clearly whether you require the Air Unit or the Ground Unit.)
-
