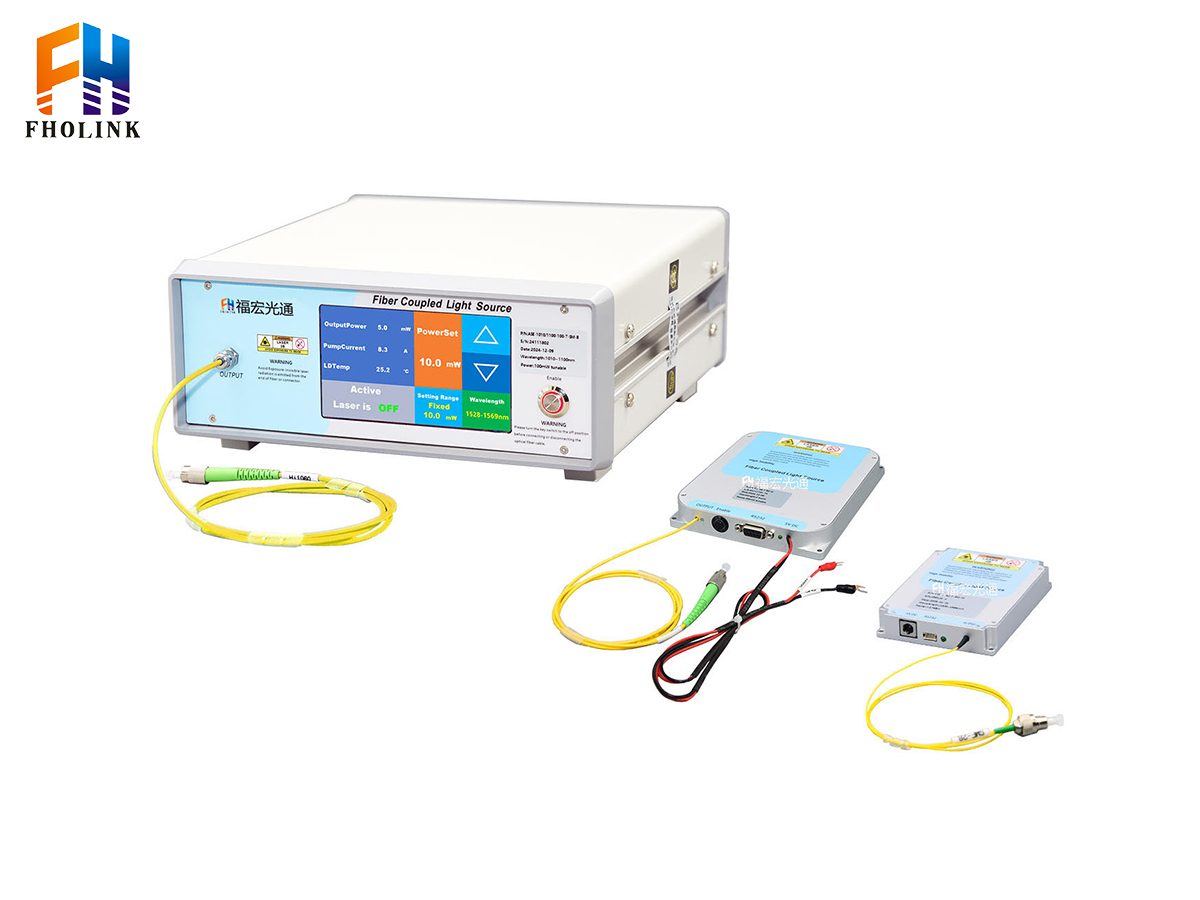

C+L-band ASE Broadband Light Source
Product Overview
Fholink's Fiber ASE Broadband Light Source is an incoherent light source based on spontaneous emission generated by pumping erbium-doped silica fiber with a semiconductor laser. It incorporates spectral flattening technology to achieve a broadband flat spectrum. The light source covers the C+L-band with excellent spectral flatness 3 dB. Output is available via single-mode fiber or polarization-maintaining fiber, making it suitable for applications such as optical fiber sensing.
Product Features
1. Flat Spectru
2. Adjustable Output Power
3. High Output Power Stability
4. Visual Display (for benchtop model)
Technical Parameters
| Optical Specifications | Unit | Typical Value | Remarks | |||||
| Spectral Range | nm | 1528~1603 | ±0.5nm | |||||
| Output Optical Power | mW | 10 | 20 | 50 | 100 | 200 | ||
| Spectral Power Density | dBm/nm | ≥-9 | ≥-6 | ≥-2 | ≥1 | ≥4 | ||
| Power Adjustment Range (Optional) | - | 10%~100% | Power adjustable while maintaining flatness | |||||
| Spectral Flatness | dB | ≤3@10/20/50/100mW | ≤6dB@200mW | |||||
| Output Port Isolation | dB | >35 | ||||||
| Short-term Stability (15 min) | dB | ≤ ±0.02 | Equivalent to ≤±0.5% | |||||
| Long-term Stability (8 hrs) | dB | ≤ ±0.05 | Equivalent to≤±1.2% | |||||
| Polarization Extinction Ratio (PER) | dB | ≤0.2 | ≥23 | |||||
| Fiber & Connector | - | SMF-28 | PM1550 | FC/APC | ||||
| Electrical and Environmental Parameters | Benchtop | Module |
| Control Method | Touchscreen / RS232 Serial Communication | RS232 Serial Communication |
| Communication Interface | DB9 Female | DB9 Female |
| Power Supply | 100~240V AC, <30W | 5V DC, <15W |
| Dimensions | B1：255(W)×285(D)×115(H)mm | M20：125(W)×150(D)×20(H)mm |
| M15：70(W)×90(D)×15(H)mm | ||
| Operating Temperature Range | -5~+35°C | |
| Operating Humidity Range | 0~70% | |
Product Applications
1. Optical Fiber Sensing
2. Medical Imaging
3. Optical Fiber Component Testing
4. Optical Experiments
5. University and Scientific Research
Product Selection Guide
| Ordering Information / Model Number | |||||
| FH-ASE | Spectral Range | Output Power (mW) | Power Adjustable (Optional) | Output Fiber Type | Package Form |
| C+L | 10/20/50/100/200 | *T | SM= SMF-28 | B=Benchtop | |
| PM=PM1550 | M=Module | ||||
-
