FWDM (1310/1490/1550nm)
Description
FWDM is typically a three-port passive optical component consisting of one Common Port (COM) and two branch ports: the Pass Port (Transmission) and the Reflection Port (Reflect). It uses optical thin-film filters to select specific wavelengths: light within a specific band is transmitted (passes through), while light in other bands is reflected.
In practical applications, common wavelength combinations for FWDM are 1310nm, 1490nm, and 1550nm. When mixed light enters the Common Port, one specific wavelength is transmitted (Pass Port), while the other two wavelengths are directed out from the Reflection Port.

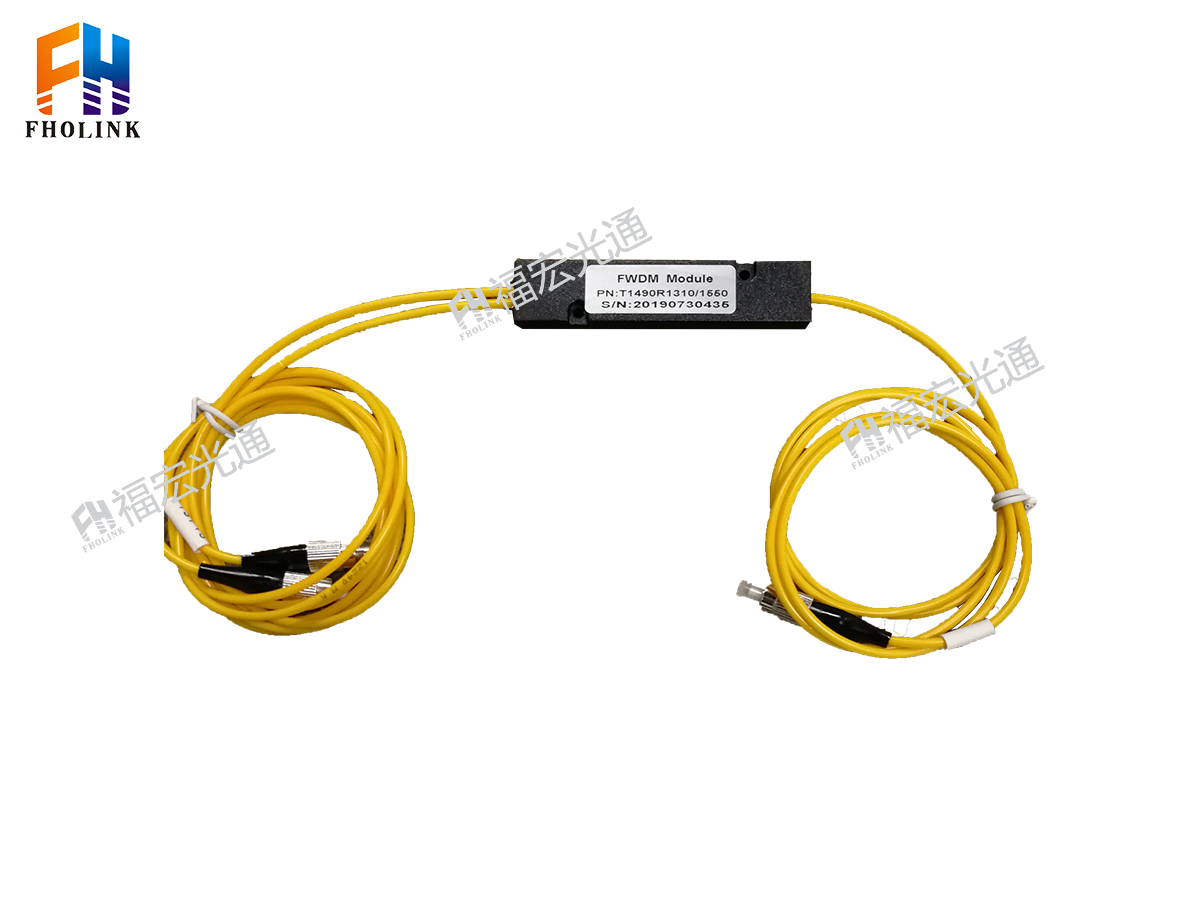

Fholink's FWDM filters utilize mature multi-cavity dielectric thin-film technology for optical filtering, offering excellent wavelength stability. They are hermetically sealed in steel tube packages, narrow-bar cases, or other custom-sized ABS boxes, ensuring high reliability.
Features
- Wide Wavelength Range
- Low Insertion Loss
- High Isolation
- Low Polarization Dependent Loss (PDL)
- High Stability
Applications
- CATV Triple-Play Network Integration
- System Integration
- University and Scientific Research
- Experimental and Production Testing
Technical Specifications
|
Parameter |
FWDM 4/35 |
FWDM 5/34 |
FWDM 34/5 |
|
|
Pass Band Wavelength Range 透射波长范围 (nm) |
1480~1500 |
1540~1560 |
1260~1360 & 1480~1500 |
|
|
Reflection Band1 Wavelength Range 反射波长范围1 (nm) |
1260 ~ 1360 |
1260 ~ 1360 |
1540~1560 |
|
|
Reflection Band2 Wavelength Range 反射波长范围2 (nm) |
1540~1560 |
1480~1500 |
|
|
|
Insertion Loss 插 入 损 耗(dB) |
Reflect Channel 反射 |
≤0.6 |
||
|
|
Pass Channel 透射 |
≤0.8 |
||
|
Channel Ripple 信道平坦度 dB) |
<0.3 |
|||
|
Isolation 隔离度 (dB) |
Reflect Channel 反射 |
> 15 |
||
|
|
Pass Channel 透射 |
>30 |
||
|
Insertion Loss Temperature Sensitivity 插入损耗稳 定性(dB/℃) |
<0.005 |
|||
|
Polarization Dependent Loss 偏振相关损耗 (dB) |
<0.1 |
|||
|
Polarization Mode Dispersion 偏振模色散(ps) |
<0.1 |
|||
|
Directivity 方向性 (dB) |
>50 |
|||
|
Return Loss 回损 (dB) |
>50 |
|||
|
Maximum Power Handling 最大功率 (mW) |
500 |
|||
|
Operating Temperature 工作温度(℃) |
0 ~+70 |
|||
|
Storage Temperature 存储温度(℃) |
-40 ~+85 |
|||
|
Package Dimension 封装尺寸(mm) |
|
|||
-
