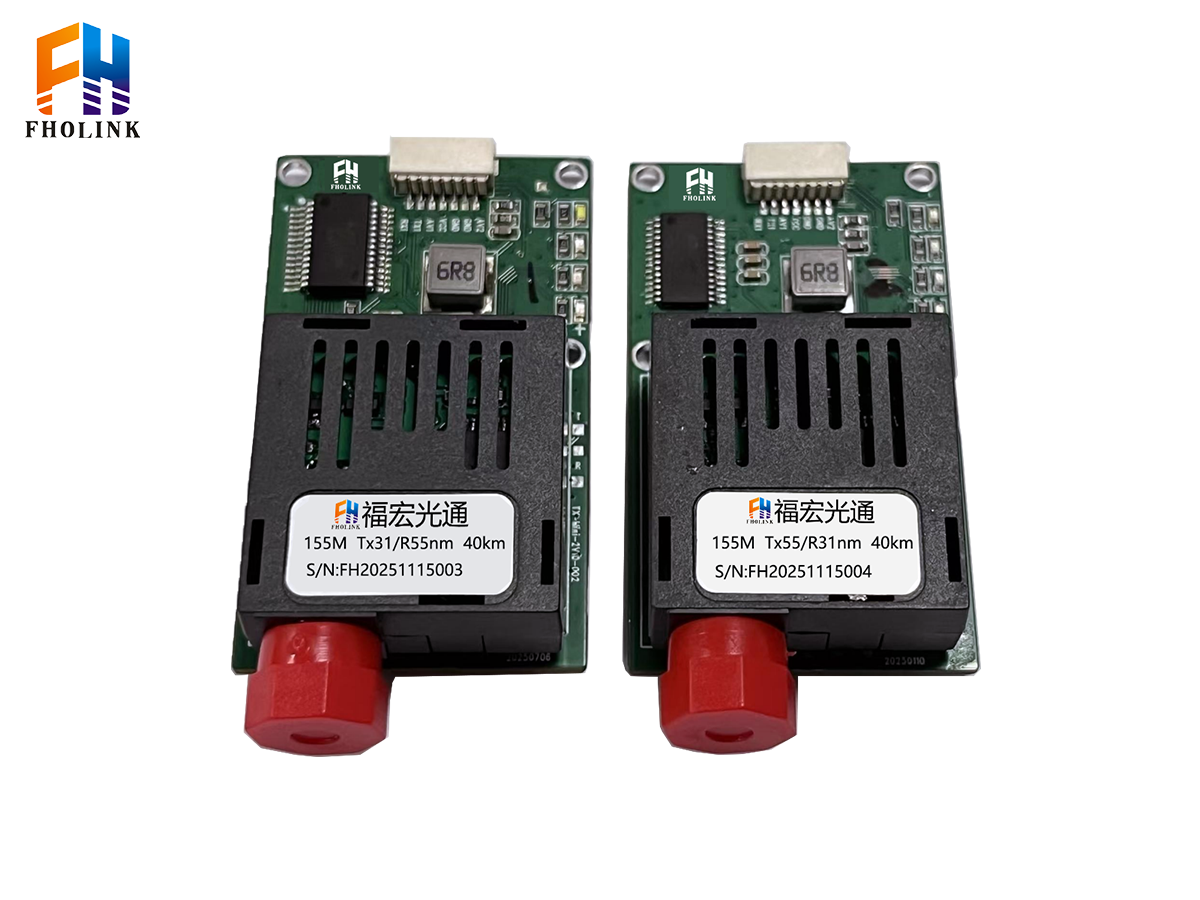

FPV (W7) Drone-Specific Optical Transceiver, supports the transmission of 2 channels of video signals.
Product Overview
The FPV (W5) Drone-Specific Optical Transceiver utilizes a cost-effective domestic FPGA and fiber optic transmission technology to achieve long-distance, lossless transmission of CVBS video signals and TTL control signals, ensuring smoother video output. It supports a maximum transmission distance of up to 120 kilometers and is suitable for complex electromagnetic environments such as drone racing, aerial photography, and industrial inspection.

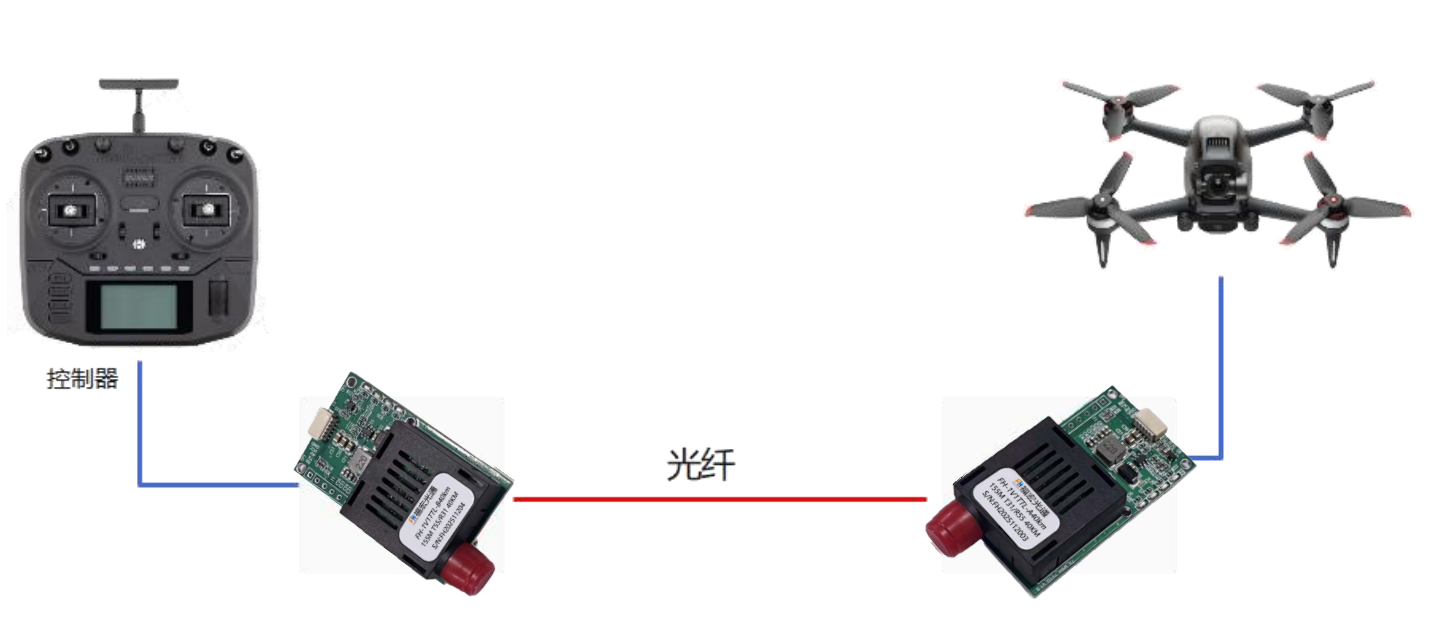

The product consists of two paired units: an Air Unit (TX 1310 nm) and a Ground Unit (RX 1550 nm). The Air Unit connects to the drone, while the Ground Unit connects to the controller. By using optical fiber as a high-speed, low-latency data transmission medium, it enables real-time transmission of high-definition video captured by the drone back to the ground control station, providing pilots with an immersive flight experience. Leveraging the ultra-large bandwidth, superior anti-interference capability, and extremely low latency of fiber optic transmission, it significantly enhances the performance and application scope of FPV drones.
Features
1. Compatible with analog and CVBS cameras.
2. Uses single-mode, single-fiber optic media with FC connectors as standard.
3. Optical communication technology effectively resists electromagnetic interference.
4. Operating temperature range: -20°C to +70°C.
5. Supports simultaneous connection of two video channels.
6. Safe, reliable, stable performance, and lightweight overall design.
7. Strong anti-interference capability, large transmission bandwidth, and long-distance transmission.
8. Supports simultaneous transmission of CVBS video signals and TTL/UART control signals.
Product Specifications
| Optical Transmission Module - Air End (OTM-SSD) | ||||
| Power Supply | DC5V~16V | Product Dimensions | 54.5 * 29 * 13 mm | |
| Operating Temperature | -20~70℃ | Storage Temperature | -40~80℃ | |
| Power Consumption | < 3W | Fiber Optic Interface | FC | |
| Fiber Type | Single-Mode, Single-Fiber |
Data Interface | SH1.0* 5PIN | |
| Data Rate | 100Mbps | Video Standard | NTSC/PAL | |
| Operating Wavelength | 1310nm/1550nm | Data Direction | Unidirectional | |
| Transmission Distance | 0~120km | Data Format | TTL(UART) | |
| Optical Transmission Module - Ground End (OTM-GSD) | ||||
| Power Supply | DC5V~16V | Product Dimensions | 54.5 * 29 * 13 mm | |
| Operating Temperature | -20~70℃ | Storage Temperature | -40~80℃ | |
| Power Consumption | < 3W | Fiber Optic Interface | FC | |
| Fiber Type | Single-Mode, Single-Fiber |
Data Interface | SH1.0* 5PIN | |
| Data Rate | 100Mbps | Video Standard | NTSC/PAL | |
| Operating Wavelength | 1550nm/1310nm | Data Direction | Unidirectional | |
| Transmission Distance | 0~120km | Data Format | TTL(UART) | |
Product Applications
1. Drone signal transmission.
2. Drone racing.
3. Drone aerial photography.
4. Industrial inspection.
Product Ordering
- FH-2V1TTL-A20km: Drone optical module air unit (TTL optical transceiver, FC interface, 20 km)
- FH-2V1TTL-B20km: Drone optical module ground unit (TTL optical transceiver, FC interface, 20 km)
- FH-2V1TTL-A40km: Drone optical module air unit (TTL optical transceiver, FC interface, 40 km)
- FH-2V1TTL-B40km: Drone optical module ground unit (TTL optical transceiver, FC interface, 40 km)
Fholink supports customization of additional distance specifications, such as 60km, 80km, 100km, and 120km.
(Note: The product is used in pairs. FC interface is provided as standard. When placing an order, please specify clearly whether you require the air unit or the ground unit.)
-
