Toutiao Data Center Interconnection Project

Project Background

Our customer, X Information Technology Co., Ltd., is a leading data center service provider in East China, with abundant data center resources in the Yangtze River Delta region. Toutiao is one of its key clients. At the end of 2025, just before the Spring Festival, Toutiao experienced a surge in data volume and urgently needed to upgrade the original 100G link between two data centers in East China to 400G. Therefore, X Information Technology Co., Ltd. approached our company to provide an optical transmission solution as soon as possible.

The two data centers are approximately 66 km apart, connected by two bare fiber cores, and currently use a pair of 100G 80 km optical modules for direct connection.

Business Challenges

1. The existing link carries live data traffic and cannot be arbitrarily taken offline for reconnection.

2. Short timeline and heavy workload – only 8 days to finalize the solution, prepare equipment, and perform the cutover.

3. The equipment must support future expansion to at least Terabit-level transmission.

Fholink Solution

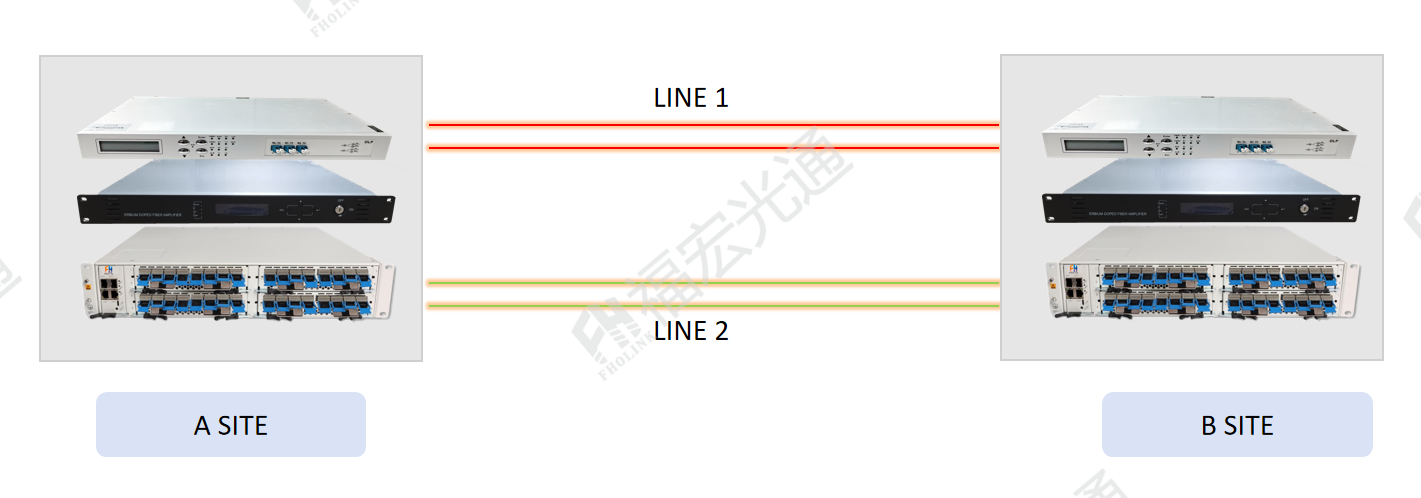

1. Adopt Fholink's FH-DCI6500 WDM optical transmission system solution.

2. The Fholink solution achieves single-channel 400G transmission, using only one channel to meet the customer's immediate goal while leaving ample channels for future expansion.

3. Deploy EDFA optical amplification and OLP optical line protection to provide sufficient link margin and automatic failover protection.

Customer Benefits

1. Within the required timeframe, not only met the customer's expansion and cutover goals but also supplied spare parts, achieving an actual transmission capacity of 600G – exceeding customer expectations.

2. The brand-new DCI equipment solution from Fholink achieved procurement and implementation costs at only 20% of those from traditional major vendors, saving significant capital and improving the customer's return on investment.

3. Dedicated technical support throughout the process, addressing any potential issues in real time.

4. Remote network management simplifies operations and maintenance, greatly enhancing efficiency.

Related Products

1. FH-DCI6500 Series Equipment – Optical Transmission Platform for Large-Granularity, High-Bandwidth Transport

2. FH-EDFA Optical Amplification Equipment

3. FH-OLP Optical Line Protection Equipment

4. FH-400G-CFP2-DCO 400G Coherent Optical Module

5. FH-Q28-CW-2 100G Short-Reach Service Optical Module
